Carb query

Rebel · Post by **Rebel** » Sat Jul 23, 11 5:14 pm

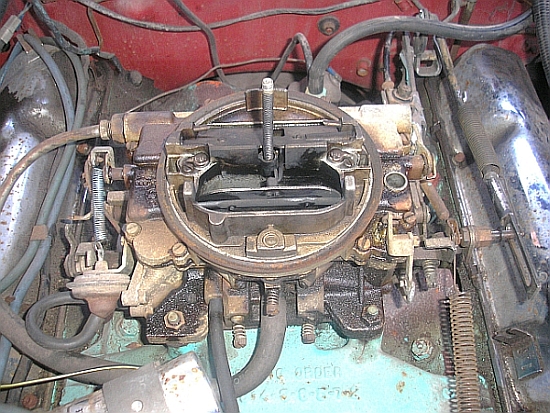

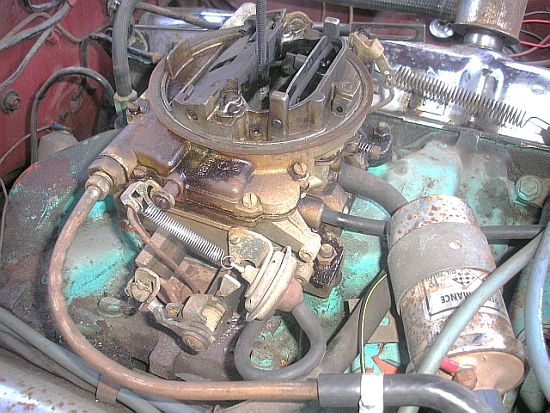

Can anyone tell me what make and model carb this is please?

Is there a rebuild kit available for it or, would I be better off just replacing it with a new carb. if so, what's the best carb to use?
The current set up is a 383 with 727 auto, all standard.

TIA

Blue · Post by **Blue** » Sat Jul 23, 11 5:22 pm

I can tell you it's a Carter, and you should be able to get a kit for it once you find the model no. Sorry can't be any more help than that.

Rebel · Post by **Rebel** » Sat Jul 23, 11 5:23 pm

Thanks Blue, at least I know what I'm looking at now, lol

latil · Post by **latil** » Sat Jul 23, 11 5:54 pm

Note any numbers on the main body and google them.

Dave-R · Post by **Dave-R** » Sat Jul 23, 11 6:03 pm

If it is stock, this might help;

http://www.nhra.net/tech_specs/engine/b ... HRY-68.rtf

Rebel · Post by **Rebel** » Sat Jul 23, 11 6:41 pm

ooh, thanks Dave.

Dave999 · Post by **Dave999** » Sat Jul 23, 11 10:12 pm

its one of the carters that Edelbrock based their performer AVS carbs on

came in 500 650 (2 small and two big holes) and 800 cfm (4 bloody big holes)

but not a big as you get in the ones with the plastic body and its not one o them

good carb

no joints or gaskets below the water line
no diaphragms to blow out
jets and rods and springs
tuning kits £40-50 from real steel and others

Dave

Dave999 · Post by **Dave999** » Sat Jul 23, 11 10:19 pm

partial listing of what is what

and i sent you the carter Tuning guide to your email

too damn big for here

S/No, Model Year, Engine, Cfm
Comp 9263,
Comp 9410 OE, 400
Comp 9502, OEGM, 500
Comp 9503, OEGM 500
Comp 9504, OEGM 500
Comp 9500 ,500
Comp 9510, 500
Comp 9511, OEMopar 500
Comp 9605, OEGM 600
Comp 9606, OE Mopar 600
Comp 9626, OE Ford 625
Comp 9627, OEFord 625
Comp9635 ,OEGM 625
Comp 9636, OEMopar 625
Comp 9637, OEFord 625
Comp 9755, OEGM 750
Comp 9756, OEGM 750
Comp 9757,OEGM 750
Comp 9758, OEGM 750
S/No Model Year Engine Cfm
4354 AMC 66/68 290
4468 68
4583 68
4623 68 343
4663
4665 AMC
6046 amc 68
S/No Model Year Engine Cfm
2641 58 318, 313
2744 58 318, 313
2797 300 1959 413
2798 300 1959 413LRAM
2797 300 1959 413LRAM
2652,53 58 DQ, 350
2812 58 318, 313
2813 58 318, 313
2855,56 59 360
2903 300 1960 413LRAM
2925 60,61 318
2927 300 1960 413
2969 318
2970 318
2991s 60 313 export
3103 60,61 318
3105 318
3106 318
3108 Desoto 61 413
3131 Dodge 66 440
3133 61-63 383
3134 Ch300 61 413
3140 318
3251 Ch300 62 413
3252 62 318
3253 62 318
3256 Ch300 62 413
3257 62 318
3258 Ch300 62 413LRAM
3259 Ch300 62 413RAM
3374 Police 61 383
3375 Police 61 383
3437 Police 61-63 383
3438 Police 61-63 383
3447s 63 413 RamDQ 600
3478 Police 62-64 383,413
3505 300J 63/64 413DQ 600
3611 Police 1964 383, 413, 426W
3613 Canada 64 383
3614 64 413
3615 64 413
3644 64 413
3705 HiPo 65 426W 750
3855 Ch300 65 383
3856 Mopar 1965/66 383
" Mopar 64/65 413 600
3858 Mopar 65 413 600
3859 65 413/426
3860 65 413/426 500
3871 Hi Po 65 413 DQ
3980 Mopar 65/66 M273-B 600
4130 66/67 383
4131 Mopar 66/67 383 500
4132 66/67 383
4133 66/67 383HP
4136 66 426H
4137 66 426H
4139, 40 66-71 426DQ
4298 66/67 383
4299 Mopar 66/67 383
4310 66/67 383
4309 66/67 383
4324 25 66-71 426DQ
4343 402 66-71 426DQ
4345 Drag strip pkcge 67 426DQFNT
4401 AVS " 383 This one
4430 S/Bird 70 426HDQ 600
4431 S/Bird 70 " 600
4432 " " " 600
4428 AVS Coronet R/T 68 440 750
4432 S/Bird 70 "Auto
4607 " 426HDQ
4621 " 426HDQ
4638 AVS 69 383 600
4742 Mopar 66-71 426H DQ FNT 500
4745 Mopar 66-71 426H DQ REAR 500
4746 Mopar 66-71 426H DQ REAR 500
4758 Mopar 500
4759 600
4760 750
4761 Mopar 500
4762 Mopar 750
4935 AVS Mopar 340
4969 Mopar 66-71 426H DQ REAR
4970 Mopar 71 426HDQREAR 500
4971 Mopar 66-71 426H DQ FNT 500
S/No Model Year Engine Cfm
2640
3258 Ford Cobra 289DQ
3259 Ford Cobra 289DQ
S/No Model Year Engine Cfm
3269 Corvette 1962 K1? 600
3310
3460 Corvette
3461 Corvette 62/63/64 327
3629
3647
3720 Corvette 1964/65 600
3721 Corvette 350 600
S/No Model Year Engine Cfm
3361 Chevy 62/63 Dual 409
3362 Chevy 62/63 Dual 409
3460 63
3461 " 63 327
3499 Chevy 63/64 409
3720 " 65 327
3783 61-65 409
3721 " 65 327A 525
3904 "
4027 Chevelle 66/67 600
4615
4966
S/No Model Year Engine Cfm
2479 57
2696 58
2815 59
2862 Cadillac 58
3352 " 62 390
3481 63
3656 64
3903 65
3904 65
3903 " 65 390/429
3906 66
4169 66
S/No Model Year Engine Cfm
4295 Oldsmobile 71 455
S/No Model Year Engine Cfm
2840 Buick 59 364
2982
3297 62
3503 63
3578 61/63 401
3633 64
3665 "
3633 "
3826 65
3921 65 401
4055 66
4053 Riviera 66 401
4331 67
3578 Buick 61/63
4053 Buick 63/66
4055 Buick 66 340
4453 Buick 66 401
S/No Model Year Engine Cfm
2740 Pontiac 57/60 370 / 389
2767 " 58 370
2819 59/60
3123 " 58 370
" " 59/63 389
" " 59/63 421
3300 Pontiac 62 389
3326 Firebird 67 326
" GTO 64
" Tempest 64/67 326/389
" Pontiac 64/67 389/421/400
3647 GTO 63
3649 GTO 64
3651 Pontiac 57-67
3895 GTO 65
3896 GTO 65
4030 GTO 66
4033 GTO 66
4034 GTO 66
4041 GTO 66
4242 Pontiac 67/69 389/400
4413 Poncho 400 67
7042 400 750
S/No Model Year Engine Cfm
3506 R1 625
3507 Stude 63/64
3588 " "
3725 " "
3508
3540 259/289
3589 "
3606 625
3726 "
3808 Avanti R2 304 625
3810 Avanti R3/R4 304DQ 675
3811 Avanti R3/R4 304DQ 675
S/No Model Year Engine Cfm
2506
2819
3131
3921
3647
4354
4762 750

Adrian Worman · Post by **Adrian Worman** » Sat Jul 23, 11 10:59 pm

I've never seen an answer like that before Dave...................I take my hat off to you mate

Rebel · Post by **Rebel** » Sat Jul 23, 11 11:21 pm

Wow, Thanks Dave, wasn't expecting so much info, I'll have a good look through it tomorrow.

charger01 · Post by **charger01** » Sat Jul 23, 11 11:35 pm

http://www.ebay.co.uk/itm/Edelbrock-Car ... 3369c0e8d6

Rebel · Post by **Rebel** » Sun Jul 24, 11 10:55 am

thanks for the link

VGVIP · Post by **VGVIP** » Tue Jul 26, 11 9:13 am

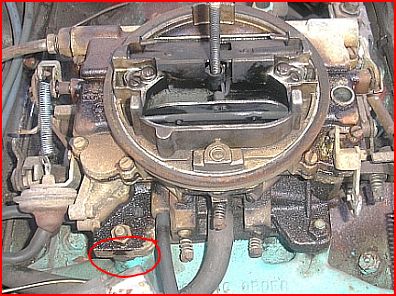

If you have not already spotted it, from memory, the number should be stamped here....

I like these carbies - clean it up, put a kit through it and keep it!

Rebel · Post by **Rebel** » Wed Jul 27, 11 7:27 pm

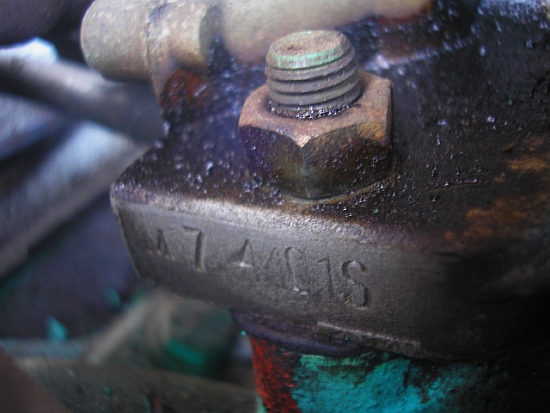

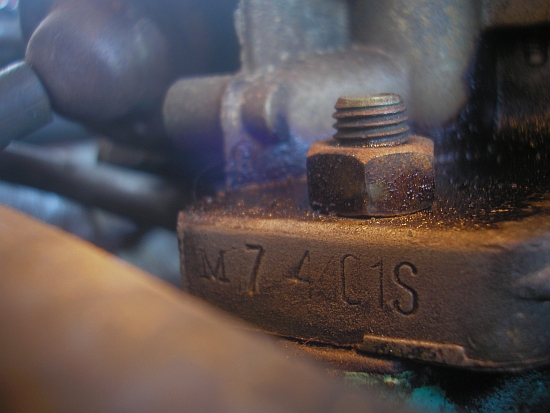

Thanks VGVIP, had a look and took a couple of pics, it looks as though the number is "M7 4401S", at least as far as we can make out it is.

If anyone can confirm or advise differently, that would be great.

TIA

VGVIP · Post by **VGVIP** » Wed Jul 27, 11 8:07 pm

Carter AVS 4401 I think, google it and see what comes up.
