by GJUK Mon Jun 12, 17 1:07 pm
Super Sloth wrote: Can you explain what the cream gravel does and why you've dug a moat around the perimeter?
Genuinely interested - I just have no idea how a building goes together!
Hi,
Sure thing - we removed 850mm down all the way over the entire area and filled it then with all the hardcore, compacting in 150mm layers.
Then removed the deep areas seen for the concrete to collect in, as the base is a structual raft rather than your normal 'pad' design under each building support you might see on a farm for example.
Reason for this is the clay soil conditions and hedge nearby. Also this has to be much better build to meet building regulations as this will be occupied by humans rather than just cattle/hay.
It has been over designed.
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Mon Jun 12, 17 1:09 pm
Shuttering done with a lot of wood.
Attachments
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Mon Jun 19, 17 9:25 pm

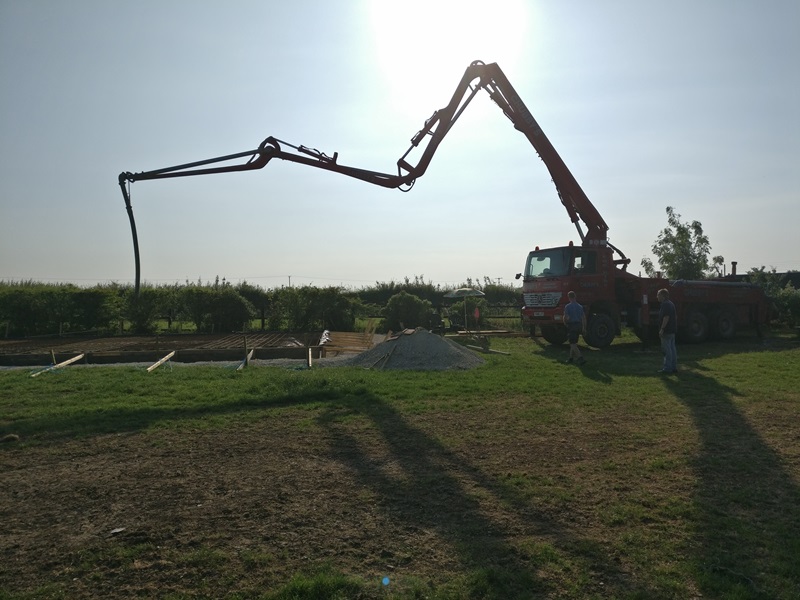

update, concrete in. 36m cubed.
Damn that was hard work, happy with the finish though
Attachments
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
billybob73
Posts: 106 Joined: Thu Aug 18, 16 3:51 pmLocation: dumfries
Post
by billybob73 Tue Jun 20, 17 3:40 pm
thats alot of concrete how many inches deep are you going for the floor? looks like your over engineering it , definately better in the long run
life is like a box of chocolates you never know what your going to get next
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Wed Jun 21, 17 8:57 am
Hello,
its 200mm thick over the entire slab, at the edges it is 800mm deep.
Yes - it is not going to move anytime soon
48 hours since the pour and no cracks so far
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
latil
Posts: 12076 Joined: Tue Feb 01, 05 10:37 pmLocation: Steve Pearson MMA/014. East Grinstead and Carmarthen.
Post
by latil Wed Jun 21, 17 12:48 pm
Very over the top,but that's councils for you. I've 50mm of concrete on dpc over soil and have jacked the belve numerous times with no cracking
1965 Belvedere 2 426 Wedge.
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Wed Jun 21, 17 9:59 pm
Do it once, do it properly
The design for the base was done by a structual engineer - over the top though I'll agree on that - better that way than the other though.
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
Mossy68
Posts: 7679 Joined: Wed Jun 27, 12 6:57 pmLocation: Ongar Essex
Post
by Mossy68 Wed Jun 21, 17 10:04 pm
GJUK wrote: Do it once, do it properly
The design for the base was done by a structual engineer - over the top though I'll agree on that - better that way than the other though.
With you on that !
It's all about Smiles per gallon !!!
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Tue Aug 15, 17 10:21 pm

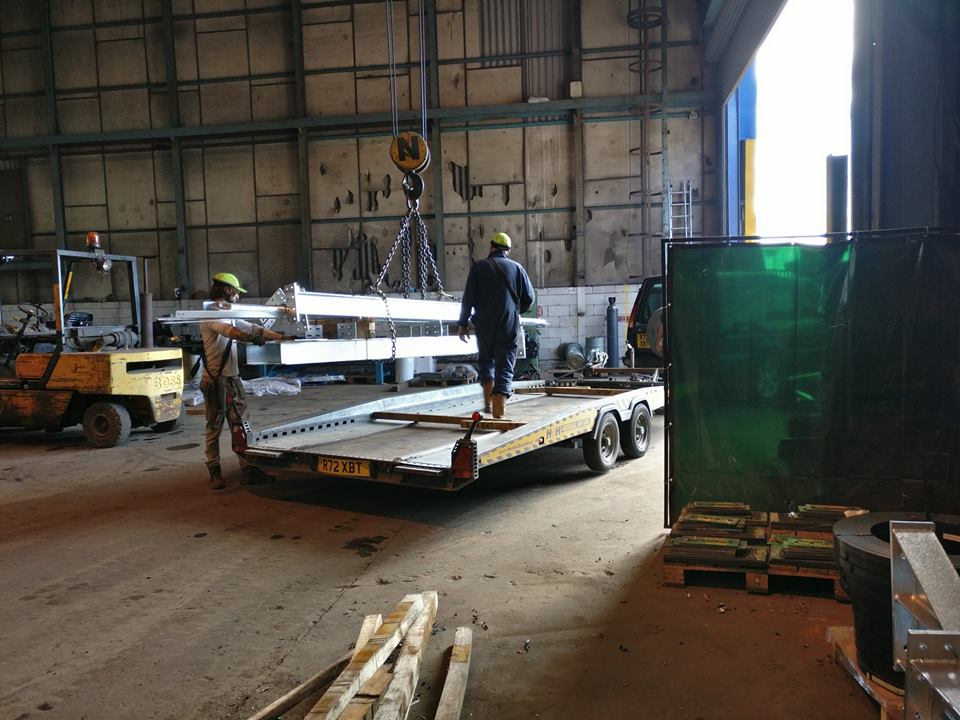

So the frame was picked up the other week:
Attachments
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Tue Aug 15, 17 10:22 pm

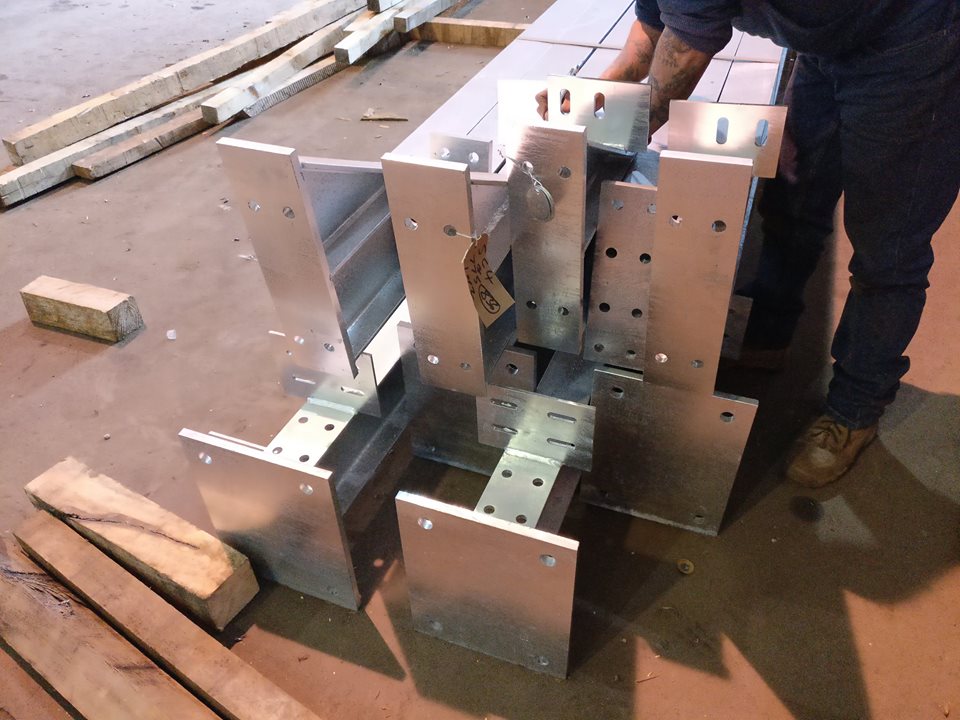

pic
Attachments
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
Cuda Commando
Posts: 218 Joined: Sun Jul 04, 10 10:53 pmLocation: Bacup,Lancashire
Post
by Cuda Commando Thu Aug 17, 17 10:12 pm
Only just caught up with this post.Green with envy.Gonna be a stonker of a garage when completed.
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Wed Sep 06, 17 9:53 pm

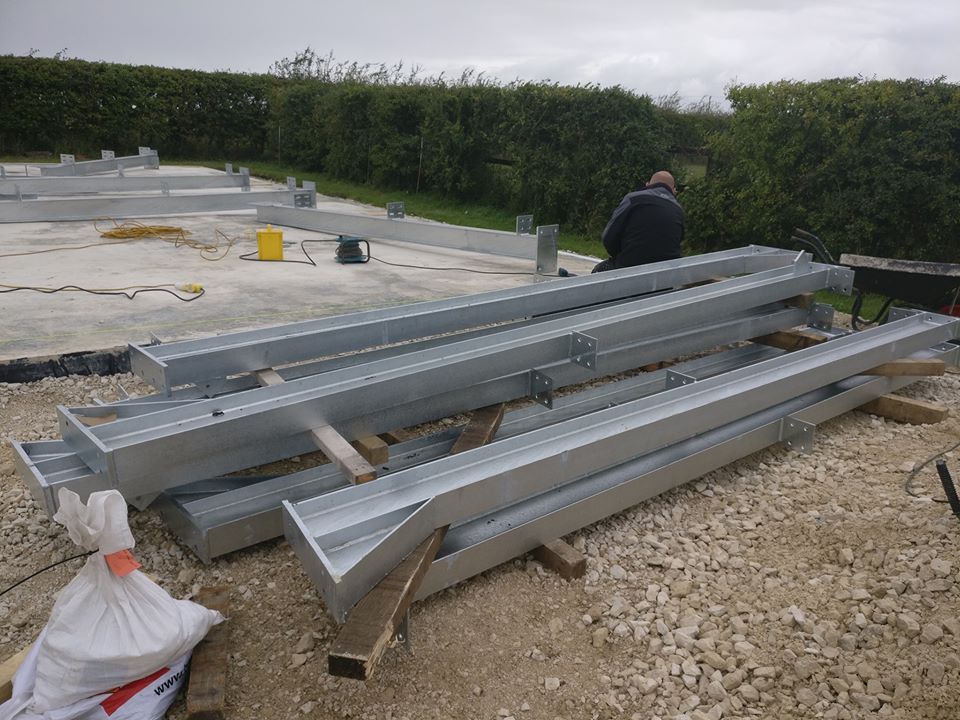

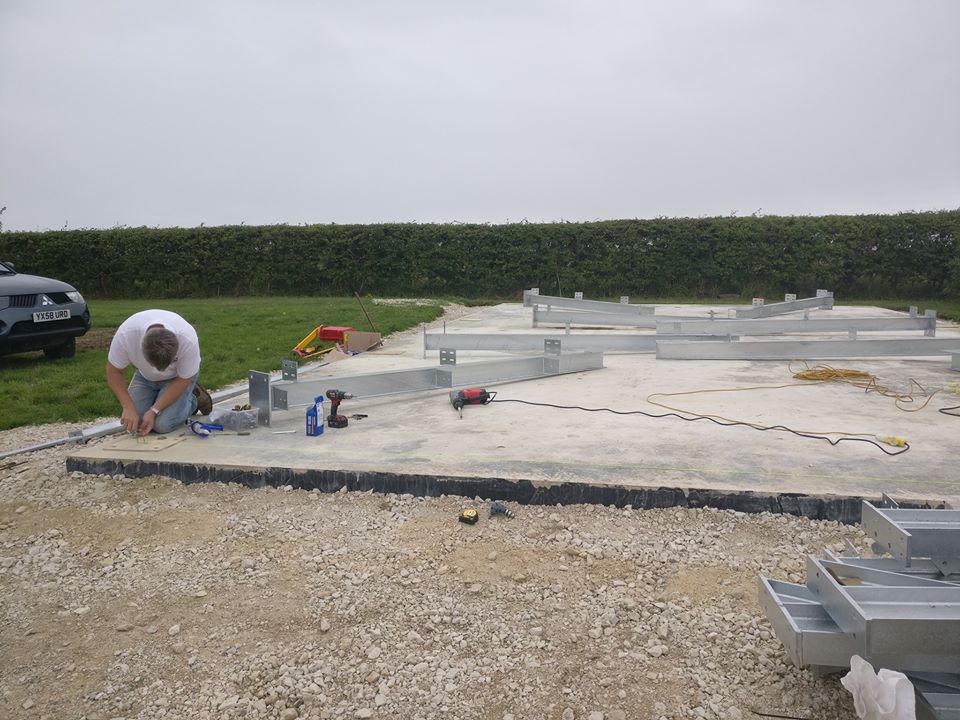

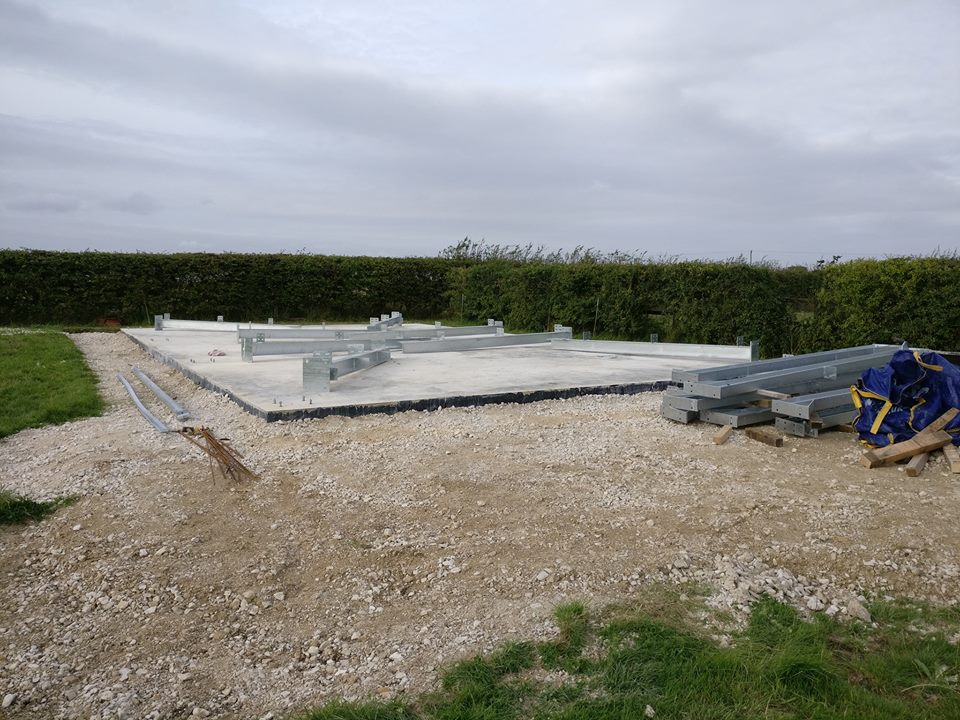

Build has started - epoxy bolts in.
Attachments
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
GJUK
Posts: 2486 Joined: Mon Oct 28, 13 5:03 pm
Post
by GJUK Thu Sep 14, 17 3:55 pm

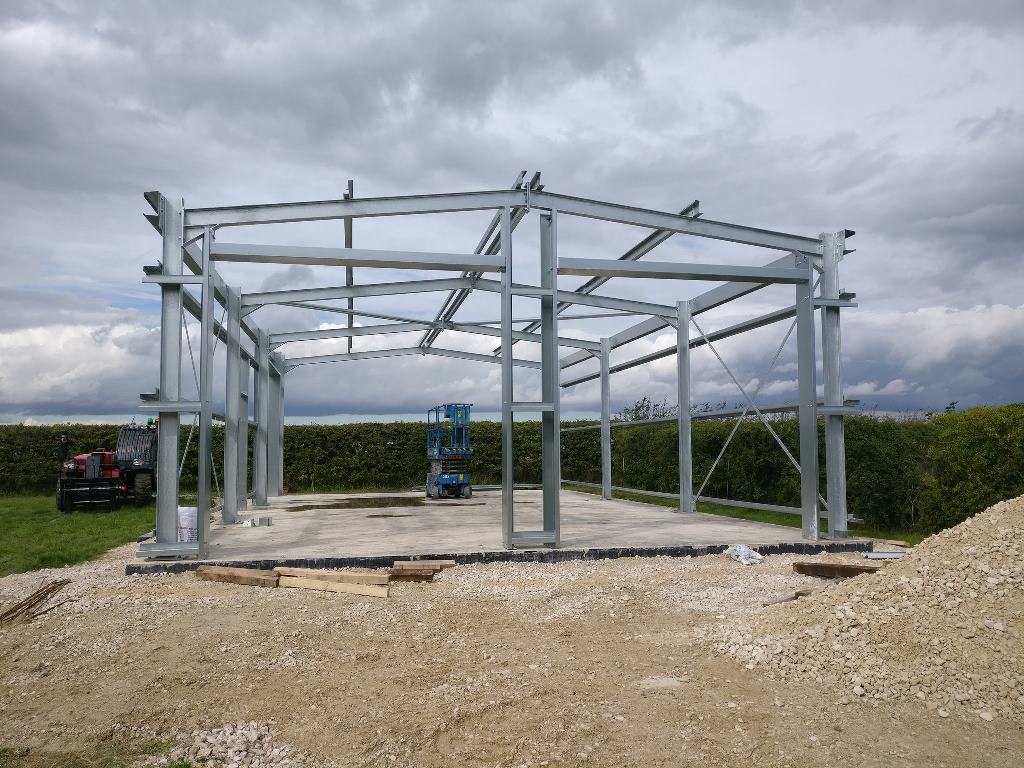

ta-da
Attachments
|| '68 Dodge Dart || '70 Plymouth Satellite || '72 Mk1 Escort || '98 AMG E55 || '85 2CV || S1 106 Rallye || E36 || E46 ||
Rebel
Posts: 2978 Joined: Sat Jul 23, 05 11:58 amLocation: Filthy McNastys Pleasure Emporium
Post
by Rebel Fri Sep 15, 17 12:41 am
Like that, very jealous
'68 Dodge Charger
cadboy
Posts: 2308 Joined: Thu Mar 21, 13 5:05 pmLocation: Worcester
Post
by cadboy Fri Sep 15, 17 6:16 am
very good
when can we bring our cars around for winter storage then
