489 suregrip - quick question

morgan · Post by **morgan** » Tue Oct 13, 15 9:26 pm

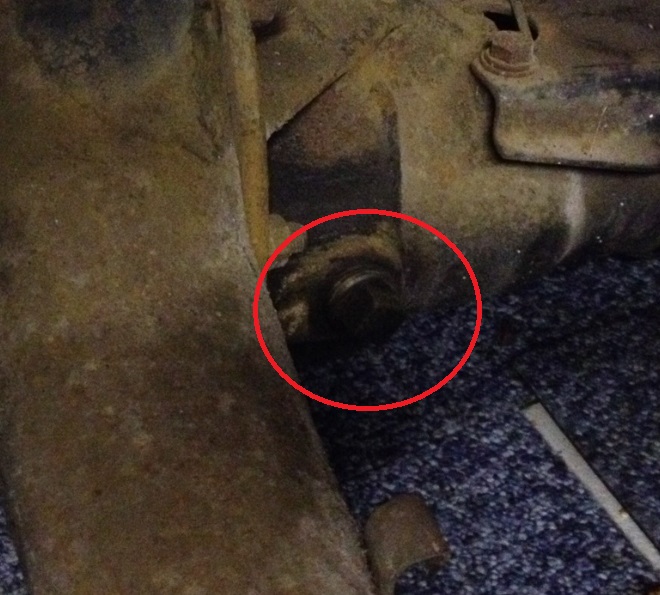

This thing. Is it the drain plug ? Siphon tube needed to empty, pump clean stuff back in ?
Daft question I know, but I've read they don't always have one.

latil · Post by **latil** » Tue Oct 13, 15 9:38 pm

John · Post by **John** » Tue Oct 13, 15 9:50 pm

Yep,

It`s actually known as a level plug

morgan · Post by **morgan** » Tue Oct 13, 15 9:53 pm

Thanks chaps. Level plug it is... (As in 'fill up to this level')

Pete · Post by **Pete** » Tue Oct 13, 15 10:06 pm

Wot John said!

Or you can pull the half shafts, Prop, and drop all 85lbs Plus of pig out and spill stinking EP80/90 everywhere and put new in!!!!

...or you can take the easy option and check / top up!

theseoldcars · Post by **theseoldcars** » Wed Oct 14, 15 8:04 am

I got a cheap pump and sucked the fluid out of my differential. Took a while to get the pipe all the way down to the bottom but managed it in the end. Wasn't any glitter in it so I'm presuming there's no chunks of iron sat at the very bottom, haha.

Refilling it was easy, thanks to the integrated fillers on the new fluid's bottle.

latil · Post by **latil** » Wed Oct 14, 15 8:14 am

Don't forget the additive for suregrip if using ordinary EP 80/90.

morgan · Post by **morgan** » Wed Oct 14, 15 8:24 am

Pete wrote:Wot John said!

Or you can pull the half shafts, Prop, and drop all 85lbs Plus of pig out and spill stinking EP80/90 everywhere and put new in!!!!

...or you can take the easy option and check / top up!

Ha ! That sounds like the 'voice of bitter experience'.
Nah - taking the vendor at his word of 'no funny noises' - I dont want to take an axle apart - as far as I can see they are voodoo and best left to professionals...
Fluid change will do for now. Clean, paint, rebuild brakes.

Blue · Post by **Blue** » Wed Oct 14, 15 8:32 am

Personally I would strip out the half shafts and diff to leave a bare case to sandblast and powdercoat. Not hard to do at all and you can fit a new diff gasket while you are at it. You can't make a decent job of cleaning and painting the axle with it fully assembled IMO.

morgan · Post by **morgan** » Wed Oct 14, 15 1:26 pm

As ever Blue, you make a good point.
I just had a feeling that axle internals were a good thing to stay away from... I'll do some reading.

Blue · Post by **Blue** » Wed Oct 14, 15 3:26 pm

Apart from setting the end float on the half shafts when reassembling (which is dead simple) it really is just nuts and bolts. The voodoo is located inside the diff itself and there is no need to mess with that.

GJUK · Post by **GJUK** » Sun Oct 25, 15 8:07 pm

latil wrote:Don't forget the additive for suregrip if using ordinary EP 80/90.

What additive should be used?

cadboy · Post by **cadboy** » Thu Oct 29, 15 7:03 am

GJUK wrote:
latil wrote:Don't forget the additive for suregrip if using ordinary EP 80/90.
What additive should be used?

Any ideas what additive and where to get it from here in UK?

latil · Post by **latil** » Thu Oct 29, 15 8:01 am

Additive,this stuff. http://www.ebay.co.uk/itm/Axle-Additive ... SwiLdV7rGJ More than likely get it from WASP or one of the other importers,a Jeep main agent will also have it.

cadboy · Post by **cadboy** » Fri Oct 30, 15 6:28 am

cheers
