Dana and 440 :?

AllKiller · Post by **AllKiller** » Fri May 04, 12 8:35 am

Awesomeness when it eventually starts

Dave-R · Post by **Dave-R** » Fri May 04, 12 8:57 am

Knightcharger wrote:How much time, effort and money did that 1 sec cost you Dave?

In finance terms not a lot more but the car was always more money than I could afford anyway. It was the amount of grief, lost time and even heartache that spoiled it. In the end it wasn't worth the hassle.

mopar_mark · Post by **mopar_mark** » Fri May 04, 12 9:03 am

AllKiller wrote:Awesomeness when it eventually starts

Jimmy lost that car to a fire, he re bodied, chassised & new motor.

Only for it to be damaged in another fire, not as bad thank goodness.

He's now gone twin turbo.

Dave999 · Post by **Dave999** » Fri May 04, 12 9:06 am

autofetish wrote:Yes there is fuel system and msd ect but i would have to invest that even with a non blower engine

MSD my Arse
if you were racing yes..... but yer not

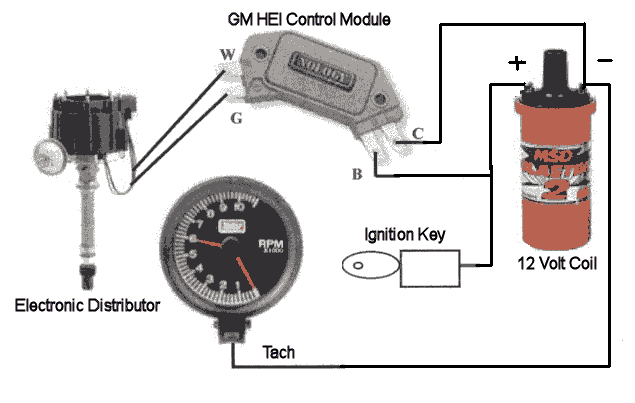

why spend 200+ quid when you can have a reliable igntion from our firends at GM using your orginal Dizzy and any modern frame coil off a mid 80s "classic"

£20 for the module
http://www.ebay.co.uk/itm/E-TRON-D1906- ... 5ae2ce2e7c

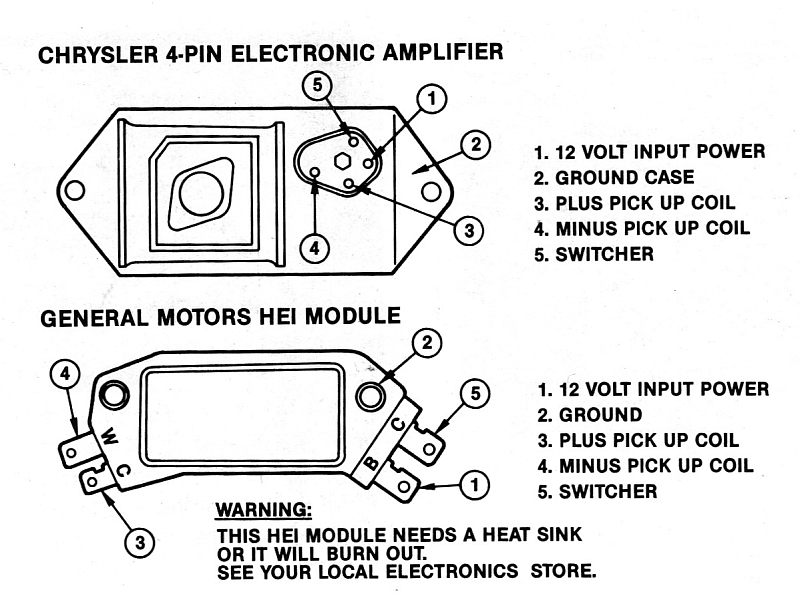

GM 4 pin module

modern laminated frame coil

like this
http://www.ebay.co.uk/itm/1974-75-76-77 ... 4836f867f5
get rid of the ballast

bobs yer uncle

if it can set off LPG in engines with 13.5:1 CR then it can work perfectly adequatly in a low boost blower/turbo set up

i'd invest the money in MLS gaskets or copper....ferriday egineering do copper from you old gasket as a template

http://www.ferriday.co.uk/

Dave

Dave999 · Post by **Dave999** » Fri May 04, 12 9:18 am

if you want to run more boost and can't be arsed with turbo kitting a carb and all that fannying about

LPG it

2X impco 425
bolt em to holley base plates
these are gas carbs not amos rings designed for pure LPG systems no dual fuel

boost reference the regulators
pipe from plenum to inlet ref port on reg

stick with propane...

aussies do it a lot
for a budget turbo set up can't be beaten no messin with intercoolers cos the gas is mighty cold

rest of the world doesn't seem to have thier enthusiasm

pick up tanks and stuff ex taxi/PTE bus/forklift
look to aussie and canadian Ebay for the Impco or OHG gas carbs

OHG (Over the Hill Gang) are the best performance gas carbs but have not been made for a long time

Dave

autofetish · Post by **autofetish** » Fri May 04, 12 9:44 am

Thanks Dave

Nick · Post by **Nick** » Fri May 04, 12 1:58 pm

Weird.

Try this.

][/url]

autofetish · Post by **autofetish** » Fri May 04, 12 2:36 pm

Nick wrote:Weird.

Try this.

][/url]

Now that is a bit of kit

The best 13min of my day that was thank you very much

Ivor · Post by **Ivor** » Fri May 04, 12 5:00 pm

Now that is lovely, the jump in horsepower and torque from comparatively low revs is instantaneous and the engineering is beautiful!

mopar_mark · Post by **mopar_mark** » Fri May 04, 12 11:14 pm

I looked at his symmetrical turbos & billet block when I went to see NRE, although it wasn't a Hemi block at that time.

I wouldn't see you getting much change from $100k for that placid monster

autofetish · Post by **autofetish** » Sat Jun 16, 12 8:13 pm

So should have listen to all your advice but cant be told so

21 quid

210 miles

8 hours

45kph

20 B&H

burnt out clutch (sorry boss

)(free fuel)

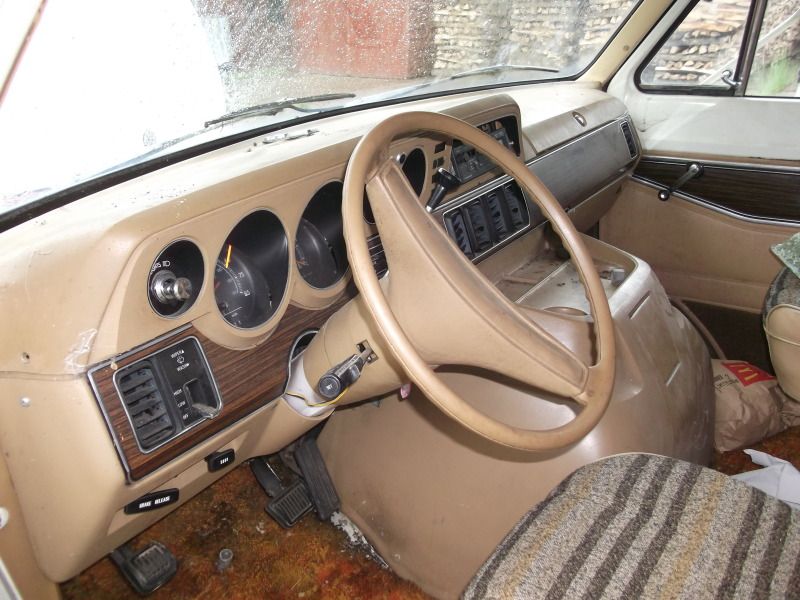

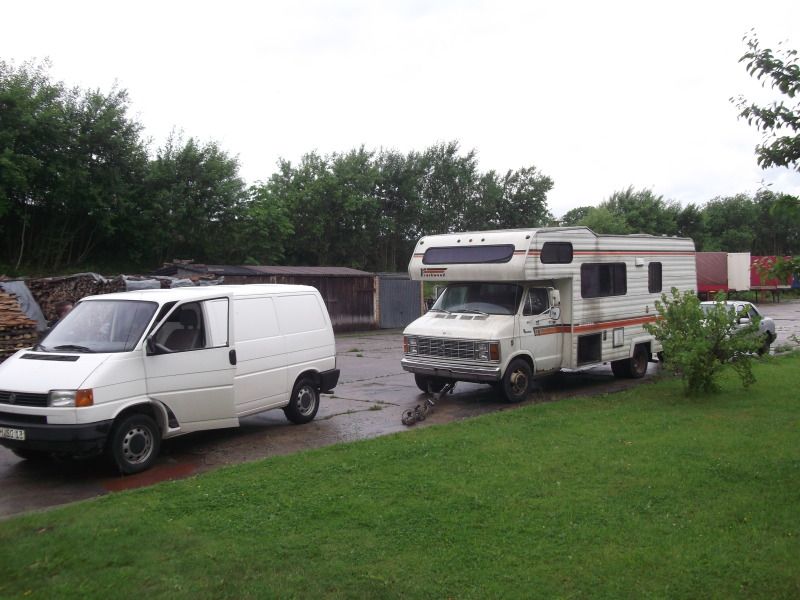

she is home

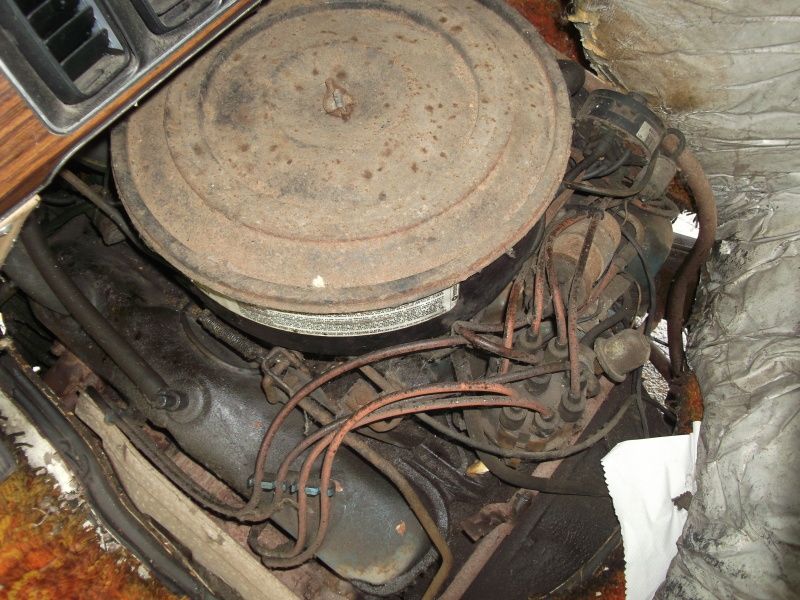

Its one of thoes Jon connolly engine with the dissy at the wrong end but only wanted the axle

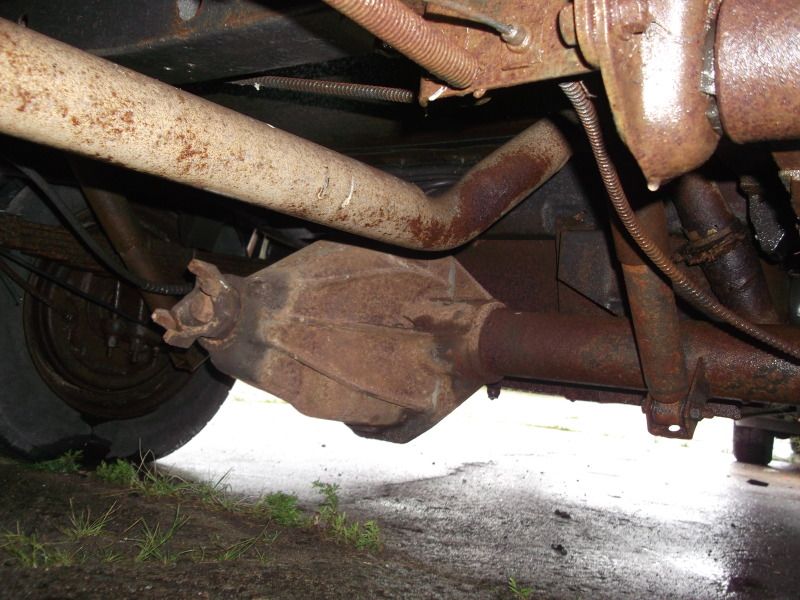

Q. Is this axle a dana 60 it is Bananarama! huge

Next plan is to strip out and do a diy dana 60 (on the cheap )

<a href="http://photobucket.com" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... CF0504.jpg" border="0" alt="Photobucket"></a>

<a href="http://photobucket.com" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... CF0508.jpg" border="0" alt="Photobucket"></a>

<a href="http://photobucket.com" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... CF0509.jpg" border="0" alt="Photobucket"></a>

<a href="http://photobucket.com" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... CF0507.jpg" border="0" alt="Photobucket"></a>

mopar_mark · Post by **mopar_mark** » Sat Jun 16, 12 10:52 pm

autofetish wrote:
Q. Is this axle a dana 60 it is Bananarama! huge

Does the cover plate look a bit like an octagon shape or should i say a 60 has this type of cover plate ?

I'm no expert, I seem remember from when I was looking at them, no doubt some one will be along to confirm or put me right

Adrian Worman · Post by **Adrian Worman** » Sat Jun 16, 12 10:59 pm

60's, 70's and 80's all have a similar cover but you can identify em fairly easy.
Some have the series code cast into the bottom right of the centre section but you'll probably have to go on the web to get a chart which clearly shows the differences., there's loads of info on there.
It's probably an unequal length axle so the shafts will be too and they are probably 8 stud commercial hubs too.
Unfortunately it's unlikely to have a locker in it either, sorry

Pete · Post by **Pete** » Sat Jun 16, 12 11:01 pm

3 or 4" tubes? Some of those brackets will need to come off..

What are the gears and width Drum to Drum?

autofetish · Post by **autofetish** » Mon Jun 18, 12 3:13 pm

Pete wrote:3 or 4" tubes? Some of those brackets will need to come off..

What are the gears and width Drum to Drum?

so they are 4 inch tubes

from backing plate to backing plate its 4 ft 10inch

one side tube is 1 ft 10inch the other 1ft 5inch (from housing to backing plate Just tube)

Tag on back plate is 41-10
4-10

Case is stamped B27278

Its a open diff on the main gear is stamped
8 30 78
DANA
34840
F2N1
41-10

also stapped on gear looks like a kid did it is 262

The bearing caps have 0257
