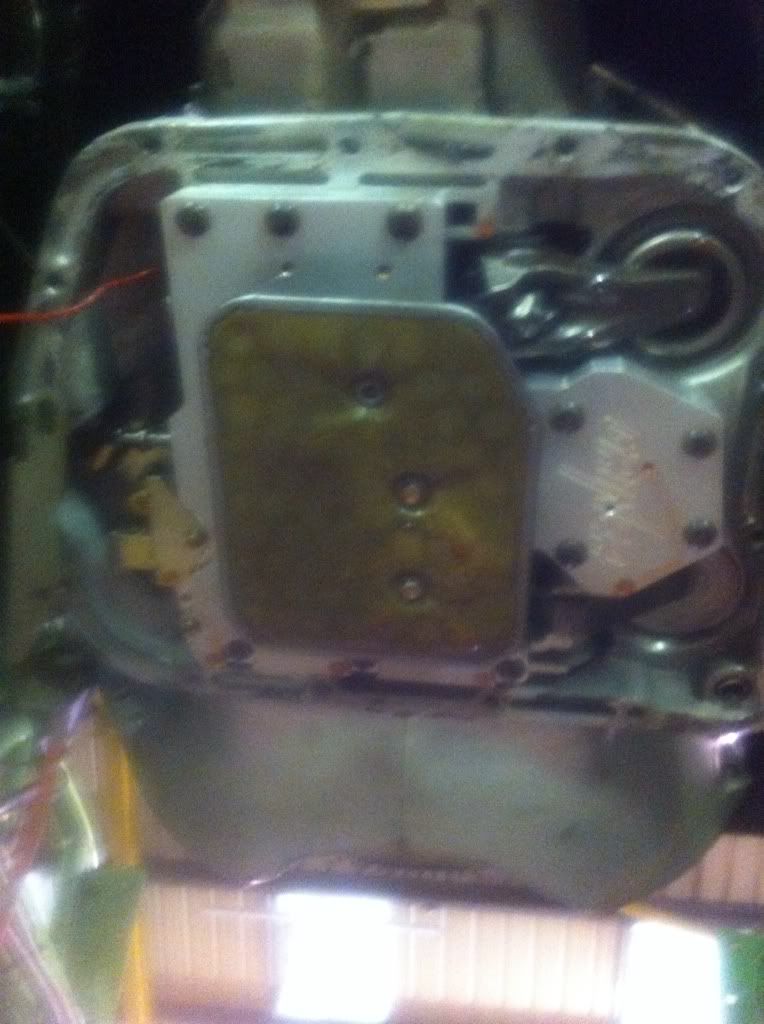

Hello there I have a 727 with griner valve body .

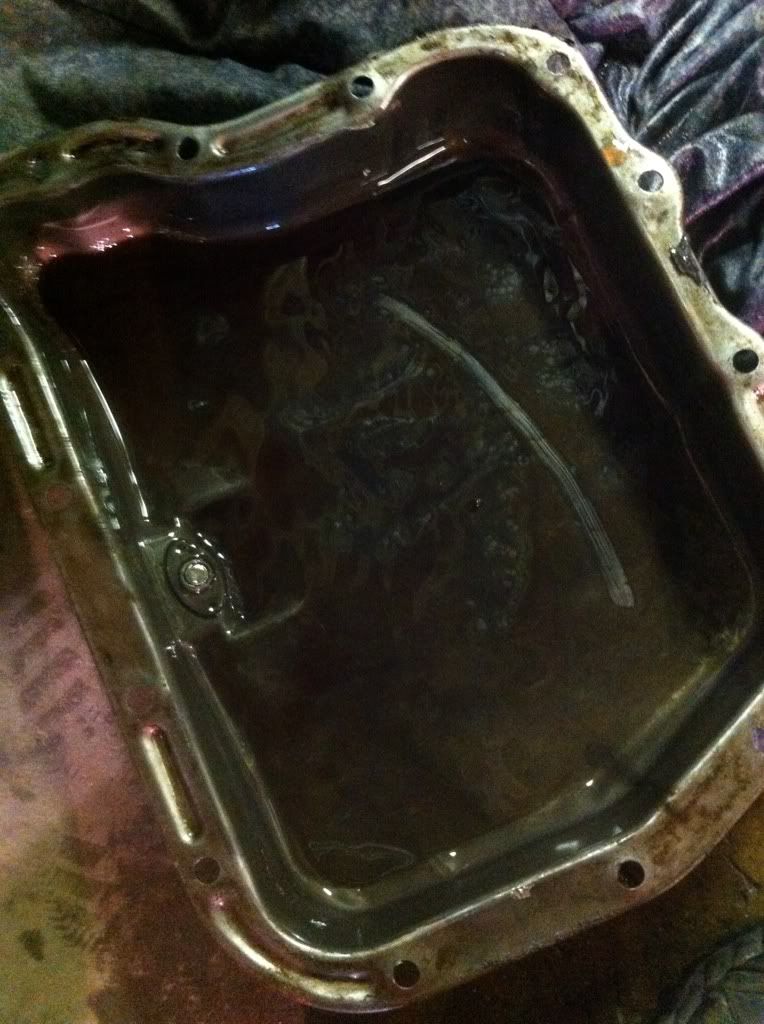

It's meant to have had a b-m kit put in it new clutches etc . It's had a small oil leak from trans brake pulled it apart and in the bottom of the sump there is quite a bit of slunge and what looks like fine metal partials . Also bang in the middle of sump is a pile of something ?? It's done about 3 miles
I'm not an expert but the words "Start again" spring to mind. Sorry.
That also goes for all the trans cooler lines which need to be clean and also the Torque Convertor, which will probably need to be cut open and cleaned.
Duncan (Cannonball) or Blue will be able to advise..............
1stpop wrote:See it maybe ok , but a wee bit nervous after the state of the engine . And I couldn't possibly comment on who did it .
a major problem amongst people that profess to be able to build transmissions is the cleaning anyone can fit new clutch plates and seals but plenty do not completly strip the full transmission and valve body and clean it to as new condition before resembly,
i can Bananarama! building a trans in a day if i have to but it will take me 4-5 hrs to clean it all first and then to strip clean rebuild a valve body another 3-4 hrs
if not stuck valves crud floating around in the fluid etc etc,
dont get me wrong i have had failures very often due to a part breakage or similar but i try to give it the very best chance in the first place,
To do it right you have to strip the box down to a bare case anyway. To fit new seals and get the correct clearences on each sub-assembly, with correct thickness washers and clips, you have to pull each sub-assembly apart.
A transmission is actually a very rewarding thing to rebuild. I'm not nearly as good as Duncan so I have to take my time over two weekends and a few hours during the week.
It is probably the most interesting and rewarding job you can do on a car. So why anyone would take short cuts is beyond me.
Dave wrote:There is no way that was built correctly.
To do it right you have to strip the box down to a bare case anyway. To fit new seals and get the correct clearences on each sub-assembly, with correct thickness washers and clips, you have to pull each sub-assembly apart.
A transmission is actually a very rewarding thing to rebuild. I'm not nearly as good as Duncan so I have to take my time over two weekends and a few hours during the week.
It is probably the most interesting and rewarding job you can do on a car. So why anyone would take short cuts is beyond me.
Dave's absolutely right, it's one of the most satisfying jobs to do, but unless your a pro it can take a very long time, that's why pro rebuilds are not cheap.
The pump don’t work coz the vandals took the handles.
When I did my city and guilds in auto boxes the teacher went on and on about cleaning it was the most important part in the rebuild. It takes longer to clean a gearbox than rebuild it. I must say though that I have rebuilt a box a the pod and it run for years after with no problems and I have rebuilt a chevy box in a field covered in mud and that went on for years after. Just lucky I gess
Yep agree the cleaning is very important.
You would be surprised how much muck from friction material and what looks to me like very fine aluminium particles settles in the valve body in a used box that looks clean inside the pan and around in inside of the case.
Building one for the road I would not hesitate again, if it were serious performance or race I would defiantly want it done by someone who 'KNOWS' or at very least their guidance.
VGVIP wrote:
Building one for the road I would not hesitate again, if it were serious performance or race I would defiantly want it done by someone who 'KNOWS' or at very least their guidance.
Yep so did I . Someone may have a bit of explaining to do if there is anything wrong in the box.
I think we really should know who bodged your engine and trans so that no one else gets caught out. You could always PM those of us that would like to know.
1965 Belvedere 2 426 Wedge.
Climate change,global warming,the biggest tax raising scam ever devised by man for mankind.
It is not that unusual to have a little friction material in the bottom of the sump after they have bedded in a bit after a rebuild.
But only after many more miles than that and a good few hard passes up the strip or your local public "test track".
