Found a few more problems, after the broken Rocker

GTXJim · Post by **GTXJim** » Sun Dec 01, 13 1:26 pm

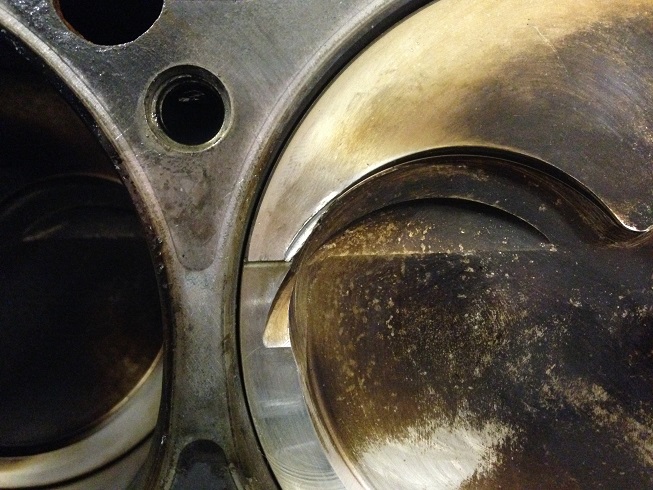

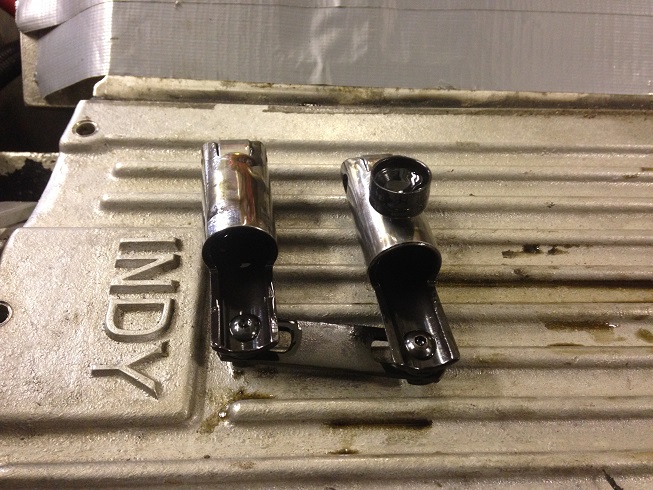

Went to refit my rockers after breaking one last Sunday, Dave Billideau kindly lent me one to get me back on the road, and noticed that the roller lifter below the broken rocker, seemed to have collapsed, so had to take the head off, anyway found the problem, the centre cup had popped out of the roller-lifter, and was sitting next to it? No damage at all! so popped it back in the lifter, then had a closer inspection on the pistons, I could see the inlet valves have been kissing the edge of the cut outs on the pistons, So did a petrol test on all the valves, and all but one was prefect, so just had to lap one valve in. So will have to take the other head off and with the dremel slightly relieve the edge of the valve cut out, When we built the motor I did a play-dough valve clearance test, and all was good?? So all in all if the cup hadn't came out I wouldn't have a clue about the pistons touching, So hopefully I can just get away with a set of head gaskets, I will pull the oil pan and check bearings and inspect the system one filter for debris, fingers crossed all is ok.

Cannonball · Post by **Cannonball** » Sun Dec 01, 13 1:33 pm

pull the mtr out jim go through it all, aint no fun drivin this sort of thing in winter anyway,

GTXJim · Post by **GTXJim** » Sun Dec 01, 13 4:09 pm

I know what your saying Dunc, just didn't want to, you know what's like, before you know it, new rings, bearing this and that $$$

mopar_mark · Post by **mopar_mark** » Sun Dec 01, 13 4:22 pm

GTXJim wrote:I know what your saying Dunc, just didn't want to, you know what's like, before you know it, new rings, bearing this and that $$$

Sorry to see that Jim, might not be so bad once you stripped it down.

For what it worth, I always like to break the hard corner/edge of the valve relief area, to take away potential hot spots

autofetish · Post by **autofetish** » Sun Dec 01, 13 4:42 pm

sorry to hear thanks for updating us usefull info keep us informed how you get on

Les Szabo · Post by **Les Szabo** » Mon Dec 02, 13 12:17 am

mopar_mark wrote:
GTXJim wrote:I know what your saying Dunc, just didn't want to, you know what's like, before you know it, new rings, bearing this and that $$$
Sorry to see that Jim, might not be so bad once you stripped it down.

For what it worth, I always like to break the hard corner/edge of the valve relief area, to take away potential hot spots

Thats good advice Mark, especially if your using N20, no sharp edges!!

Les

GTXJim · Post by **GTXJim** » Sat Dec 07, 13 6:16 pm

Well I pulled the motor today, and found that I had one torque convertor bolt was out by a couple of threads and another was loose, so glad the motor is out

Cannonball · Post by **Cannonball** » Sat Dec 07, 13 6:31 pm

GTXJim wrote:Well I pulled the motor today, and found that I had one torque convertor bolt was out by a couple of threads and another was loose, so glad the motor is out

nice one jim, and dont get stuck in that mindset about bearings and rings etc, if they look ok reuse them we have to get back to basics you really dont have to have new all the time,
when i was a kid had that 3 litre capri got the crank knockin had no money for new bearings crank grind etc etc so pulled it all out leaving heads on etc went to the local scrappie pulled a 3 litre mtr off the scrap engine pile pulled the crank and all bearings out just kept bearings as they came out journels and pairs banged the lot in my engine job done the mtr used to get spun up hard take on any comers never lost and loads of trips to newquay towing a caravan, i myself sometimes lose sight of reusing some parts with the inbuilt fear that used is not good enough, hope its all good matey,

Mick · Post by **Mick** » Sat Dec 07, 13 8:01 pm

Glad things aren't too bad Jim.
Mick

GTXJim · Post by **GTXJim** » Sat Dec 07, 13 8:42 pm

I'm glad I pulled the motor, and hopefully bearings and rings are ok, and will be back on the road ASAP

GTXJim · Post by **GTXJim** » Sat Dec 07, 13 9:08 pm

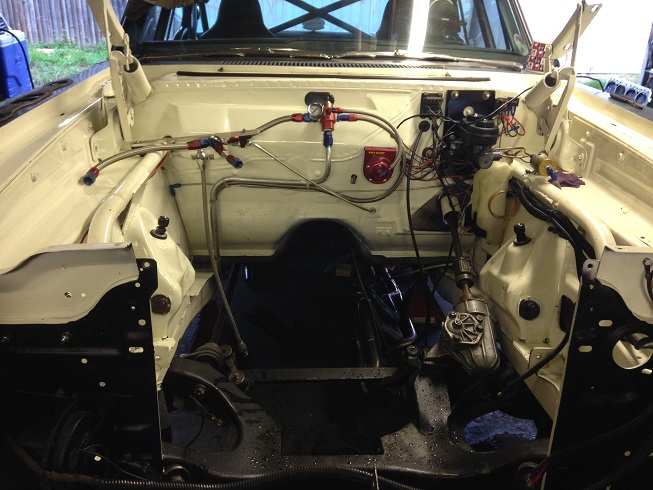

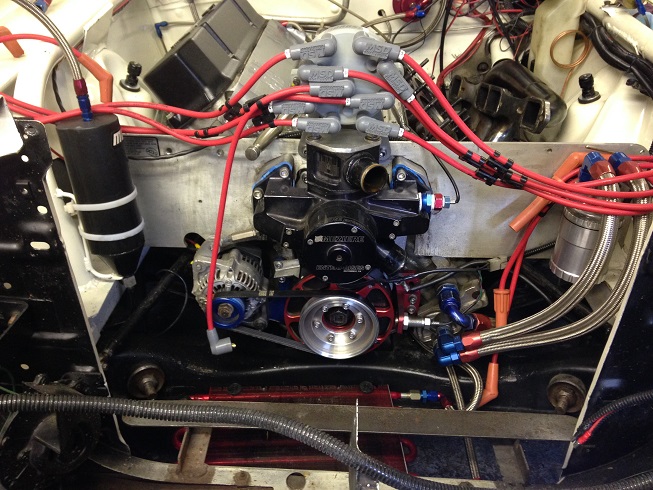

couple of pictures from today, front of motor without the rad in the way, and empty bay.

Pete · Post by **Pete** » Sat Dec 07, 13 10:19 pm

Have you got a revised Drag Link to clear the headers??

GTXJim · Post by **GTXJim** » Sat Dec 07, 13 11:43 pm

Yes, home made, goes under the dragster style oil pan, that's why the K member has been modified also, took a bit of working out but works a treat.

Pete · Post by **Pete** » Sun Dec 08, 13 10:16 am

GTXJim wrote:Yes, home made, goes under the dragster style oil pan, that's why the K member has been modified also, took a bit of working out but works a treat.

Fantastic - some close up pictures would be nice!!
