68 Charger LL1

A place to show off your Pride and Joy

Moderator: Moderators

nigel

Post by nigel »

R.RUNNER wrote:Is this one of "TONY OH`s" imports???? :? :? :?




Looking good :thumbright:




:P :P :P
Yes, bought it from Tony going on 4 years ago, and it took me about 18 months to restore it, but since then just been driving and enjoying. I use it all the time (even to take the misses shopping to Tesco). Also travelled some long distances (euronats, hot rod drags, nostalgia drags etc) and it's 100% reliable. I'm in the process of upgrading the brakes so my misses can drive it.
User avatar
steveo
Posts: 3920
Joined: Sat Apr 30, 05 11:16 am
Location: Kent

Post by steveo »

nice looking charger 8-)
Rich

Post by Rich »

whats the brake plan Nige ?????????
nigel

Post by nigel »

Rich wrote:whats the brake plan Nige ?????????
Replacing existing manual drums for a power disc brake kit, and while I'm at it I'm renewing all the front suspension bushes, track rod ends etc.

I must mention the fantastic service I had from Classic Industries in Huntington Beach, California. Place an order late on Monday evening, items delivered first thing Thursday morning (and I used the cheapest shipping option they offered).

The costs of the parts for those of you who are interested (like I am) is below:

disc brake kit $710
suspension rebuild kit $253 (doesn't include pitman arm, idler arm, or anti roll bar bushes)
moog premium idler arm $60
They also gave me a volume discount of $102
shipping and other costs $435

The exchange rate at the time was $1.49 to the £, total bill was £905.71 plus duty and vat charge of £221.31 (Total cost delivered £1127.02).
Attachments
Out with the old
Out with the old
In with the new, got this far so far without any problems
In with the new, got this far so far without any problems
User avatar
autofetish
Posts: 5599
Joined: Sat May 21, 11 6:43 am

Post by autofetish »

Great info keep the pics coming :thumbright:
nigel

Post by nigel »

Had a few hours to spare this weekend so I went out to garage to assemble the hub and calliper - it was easy, the only complication being, although minor, was that I had to bend the metal part of the brake hoses as it was stretching a bit on full lock (see pic).
Attachments

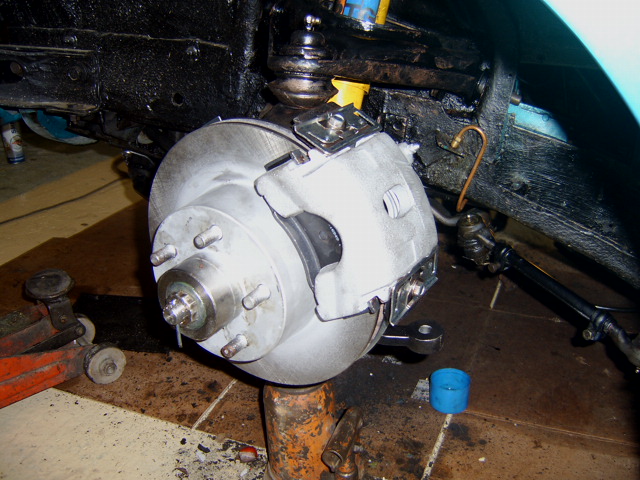

completed hub assembly
completed hub assembly
had to bend this a little to give a bit more slack
had to bend this a little to give a bit more slack
nigel

Post by nigel »

Brake conversion now complete, just got to adjust the proportioning valve to stop the rear brakes locking before the front.
Attachments

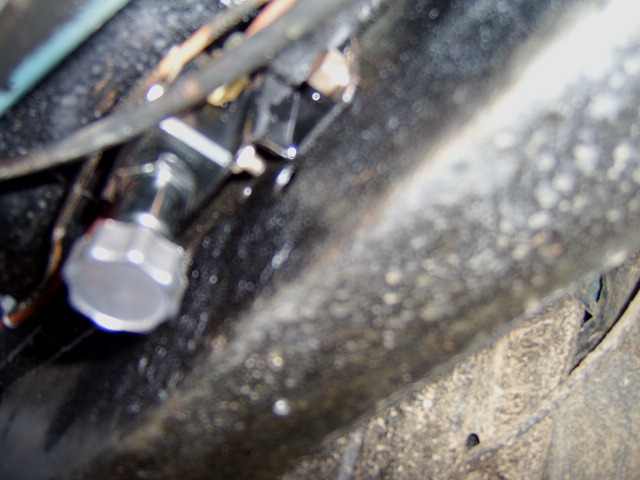

The proportioning valve is plumbed into the brake pipe that runs to the rear brakes.  Also ran all new brake pipes
The proportioning valve is plumbed into the brake pipe that runs to the rear brakes. Also ran all new brake pipes
In goes the booster.
In goes the booster.
