Will´s 1968 Dodge Charger

autofetish · Post by **autofetish** » Wed Mar 12, 14 8:22 pm

Mossy68 wrote:Very neat.
Will mounting them there starve the radiator of air though ?

Pass never done this before

Mossy68 · Post by **Mossy68** » Wed Mar 12, 14 8:43 pm

Seems to be covering a lot of the rad and I would have thought that blown motor is gonna need a lot of cooling ?
( I know Bananarama! all though. !

)

autofetish · Post by **autofetish** » Wed Mar 12, 14 8:59 pm

Have electric fan other side to pull air though both cooler and rad

Seems the way most people do it

Is this all wrong ??

Mossy68 · Post by **Mossy68** » Wed Mar 12, 14 9:31 pm

autofetish wrote:Have electric fan other side to pull air though both cooler and rad

Seems the way most people do it

Is this all wrong ??

Sorry if I've put doubt in your mind Will

May be a perfect set up ?
Only me thinking aloud and like I said I know nowt !

autofetish · Post by **autofetish** » Wed Mar 12, 14 9:42 pm

It's all good fella better to find out now hence why I post my life here

Had a look

Most modem cars stack like this

There are issues with some heat soak form rad to rad but ideally all should be the same temp ( i think ) not sure on gear box

I reckon it's a Gooden but anyone else think different please say

db · Post by db » Thu Mar 13, 14 12:30 pm

Very neat and it does seem to be how most production cars do it. Personally I've always tried to keep them separate, it just seems logical that the heat will dissipate better if one hot thing is far away from another hot thing. Possibly the difference is so slight it doesn't matter?

Dave-R · Post by **Dave-R** » Thu Mar 13, 14 12:53 pm

Always make sure you have a gap of at least a quarter inch between the oil coolers and the rad core. Otherwise airflow through them will suffer greatly.

Half inch would be better if you can.

autofetish · Post by **autofetish** » Sat Mar 15, 14 6:15 pm

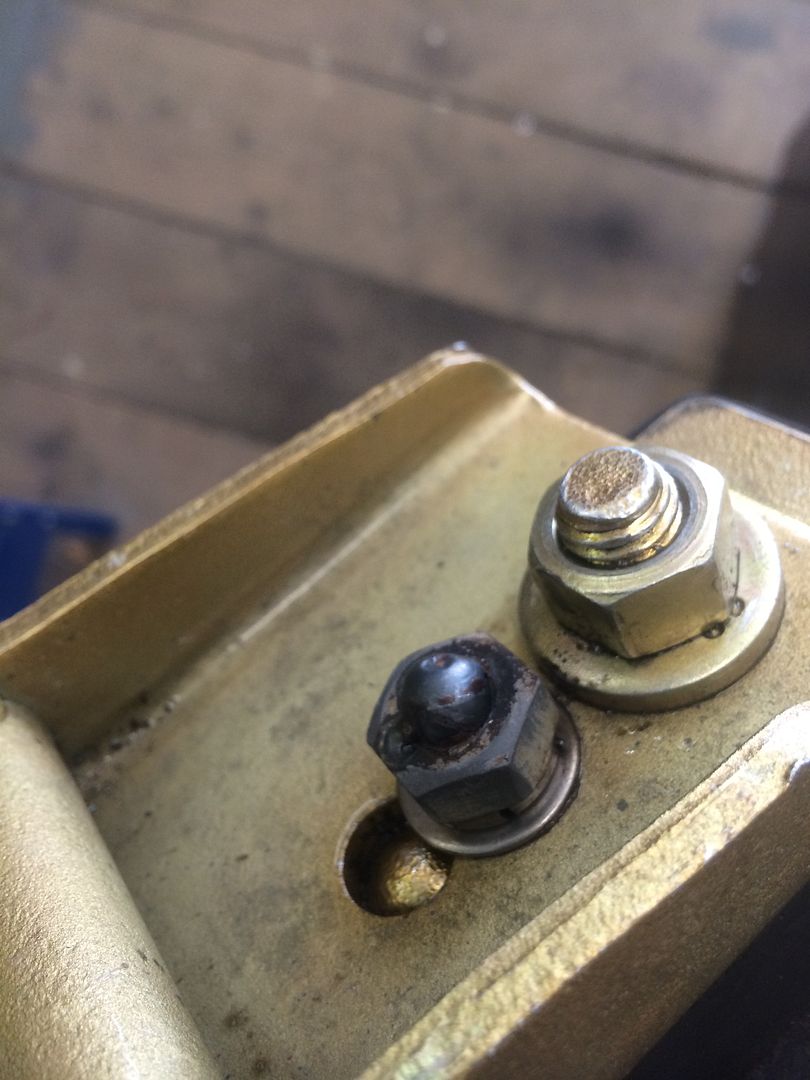

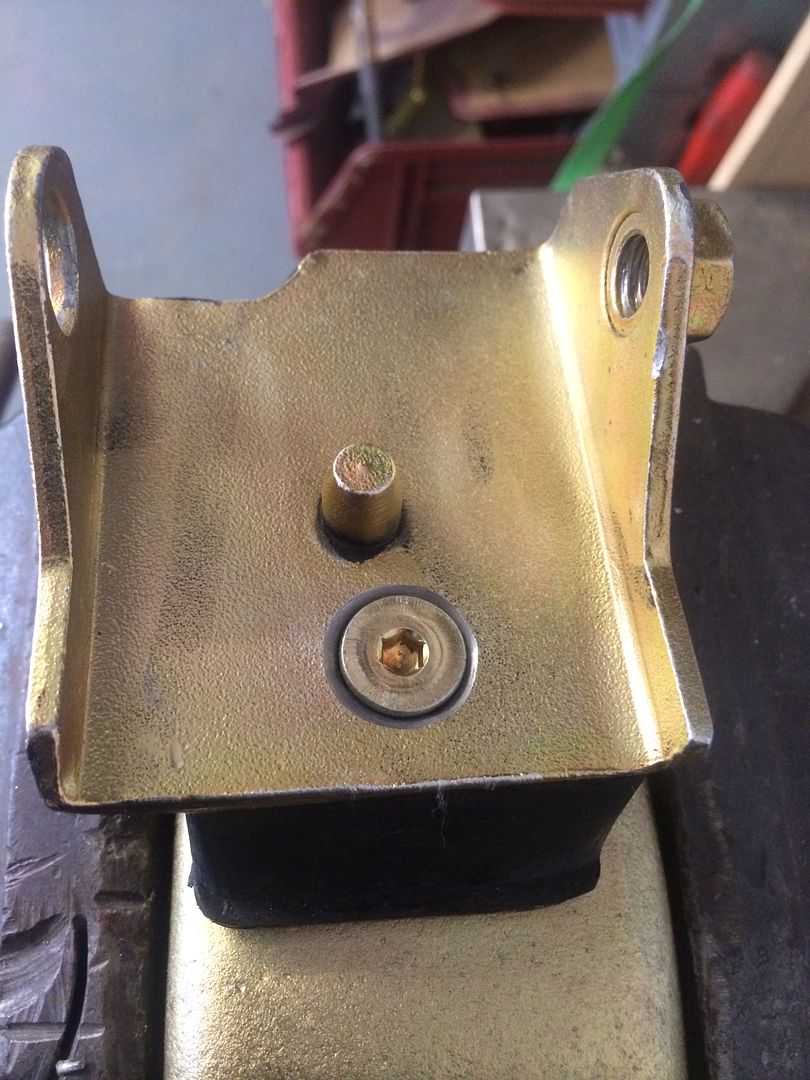

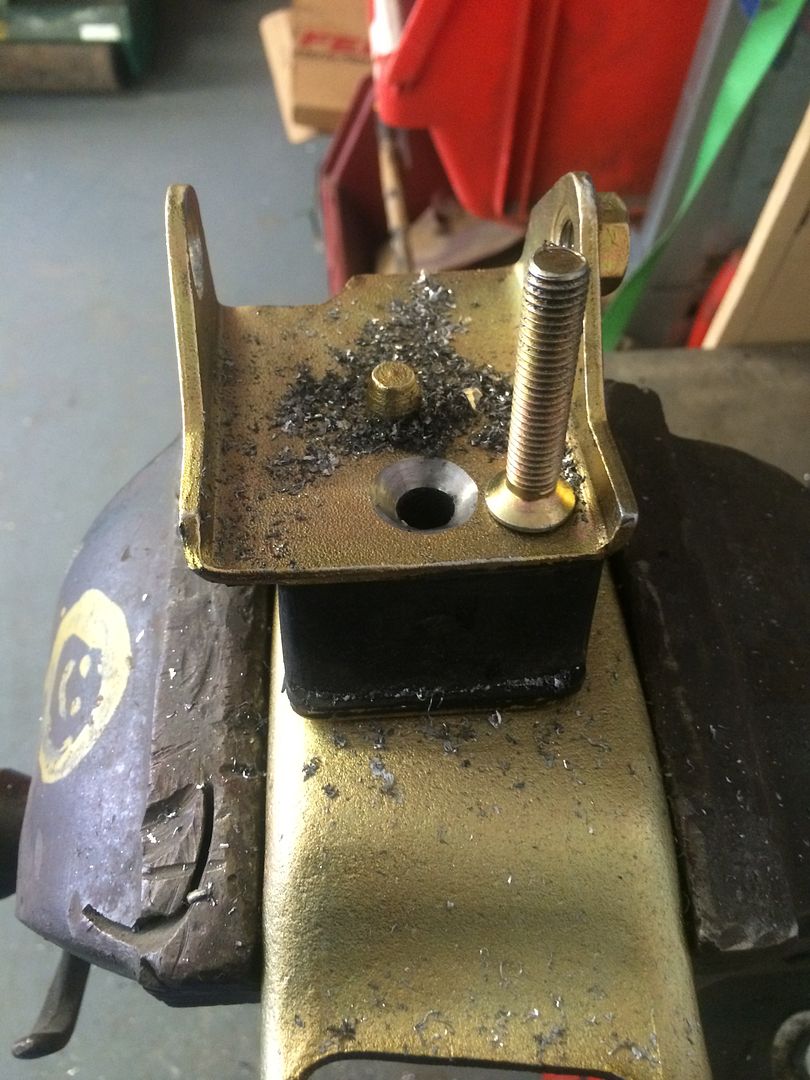

Next was worried about the NSF engine mount as there are know to rip out due to engine torque so I drilled hole fitted counter sink head bolt.

Now if you tighten it up it squashes the mount so welded the nut so she is not coming off soon.

<a href="http://s73.photobucket.com/user/autofet ... s.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... ldgfcs.jpg" border="0" alt=" photo 025A59A8-E54D-4ED0-8236-2CB0614CBC41_zpsaeldgfcs.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... q.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... ydksrq.jpg" border="0" alt=" photo DD5B25E4-AC24-45E3-A4F6-8792BED8B8FD_zpstxydksrq.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... r.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... andgwr.jpg" border="0" alt=" photo 78B31C60-73D8-494A-AC9E-5911DB71151D_zpskkandgwr.jpg"></a>

autofetish · Post by **autofetish** » Sun Mar 23, 14 12:25 pm

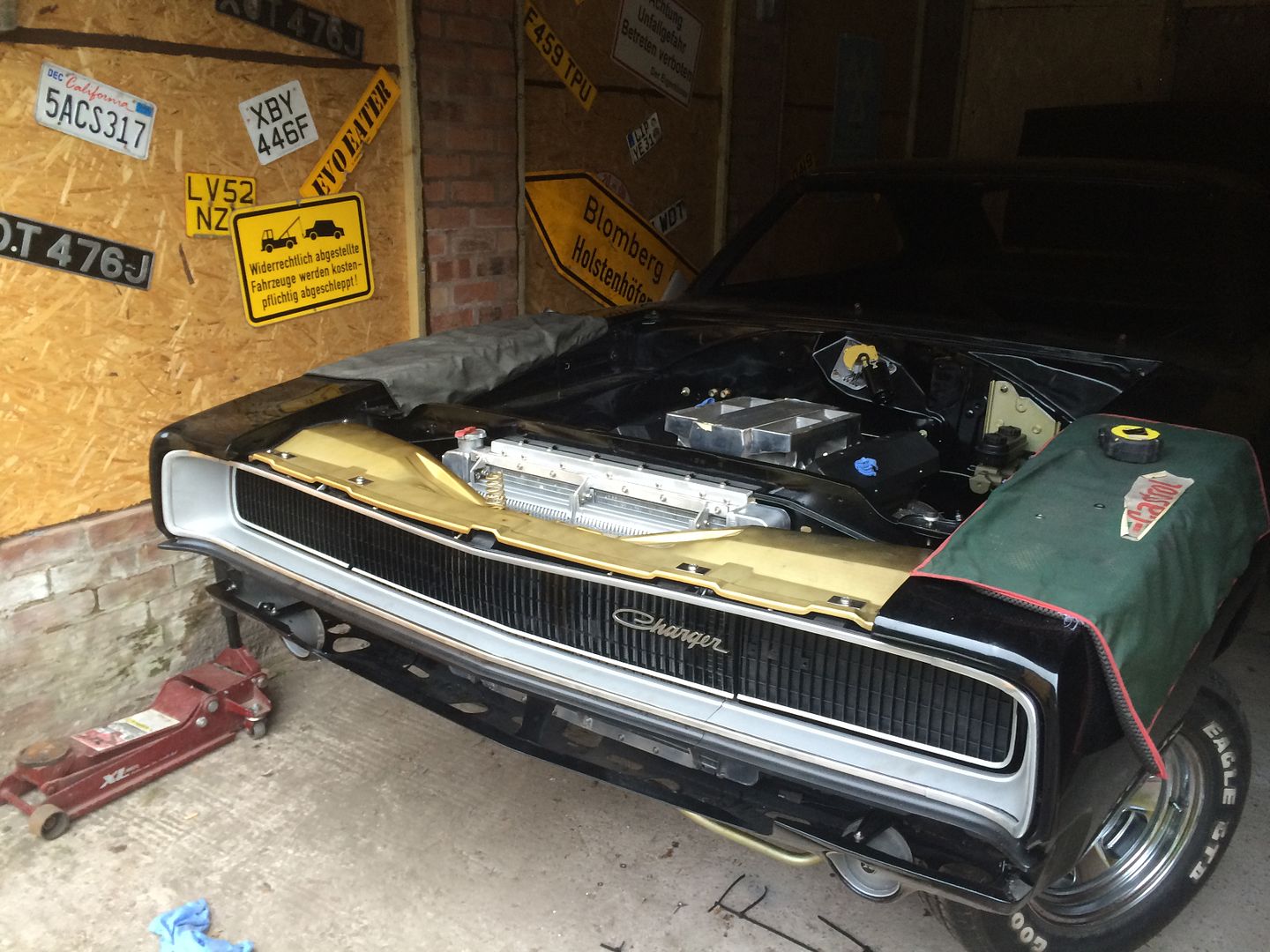

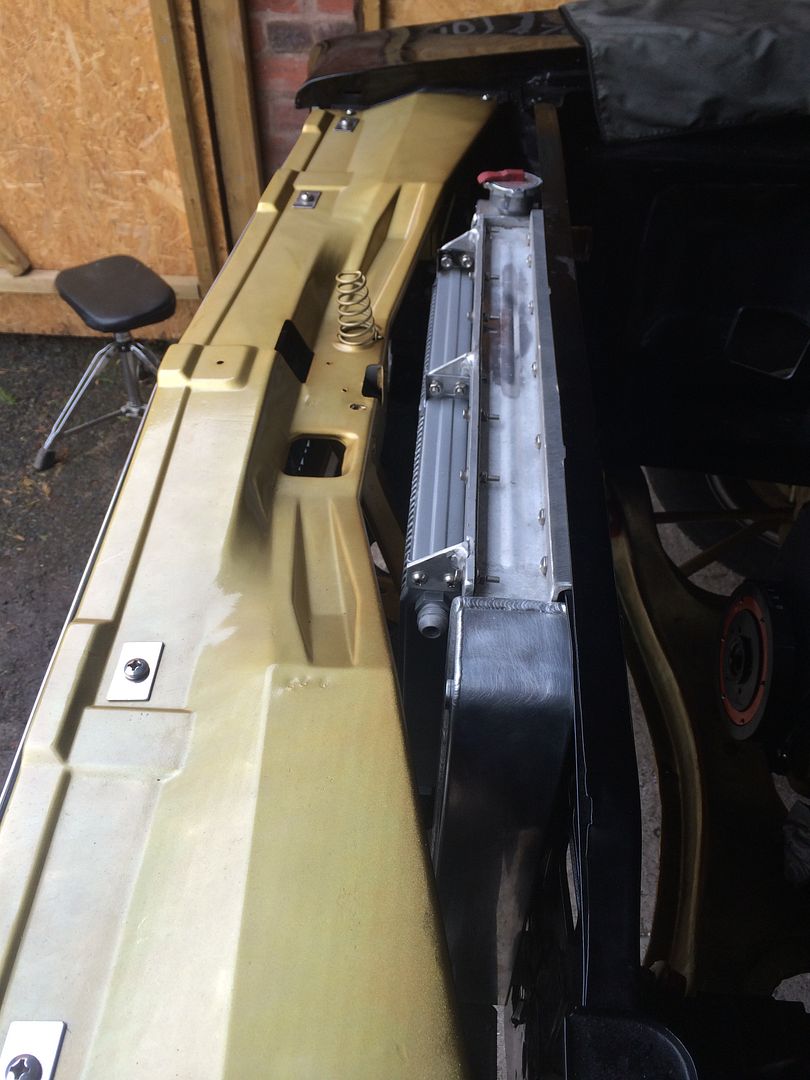

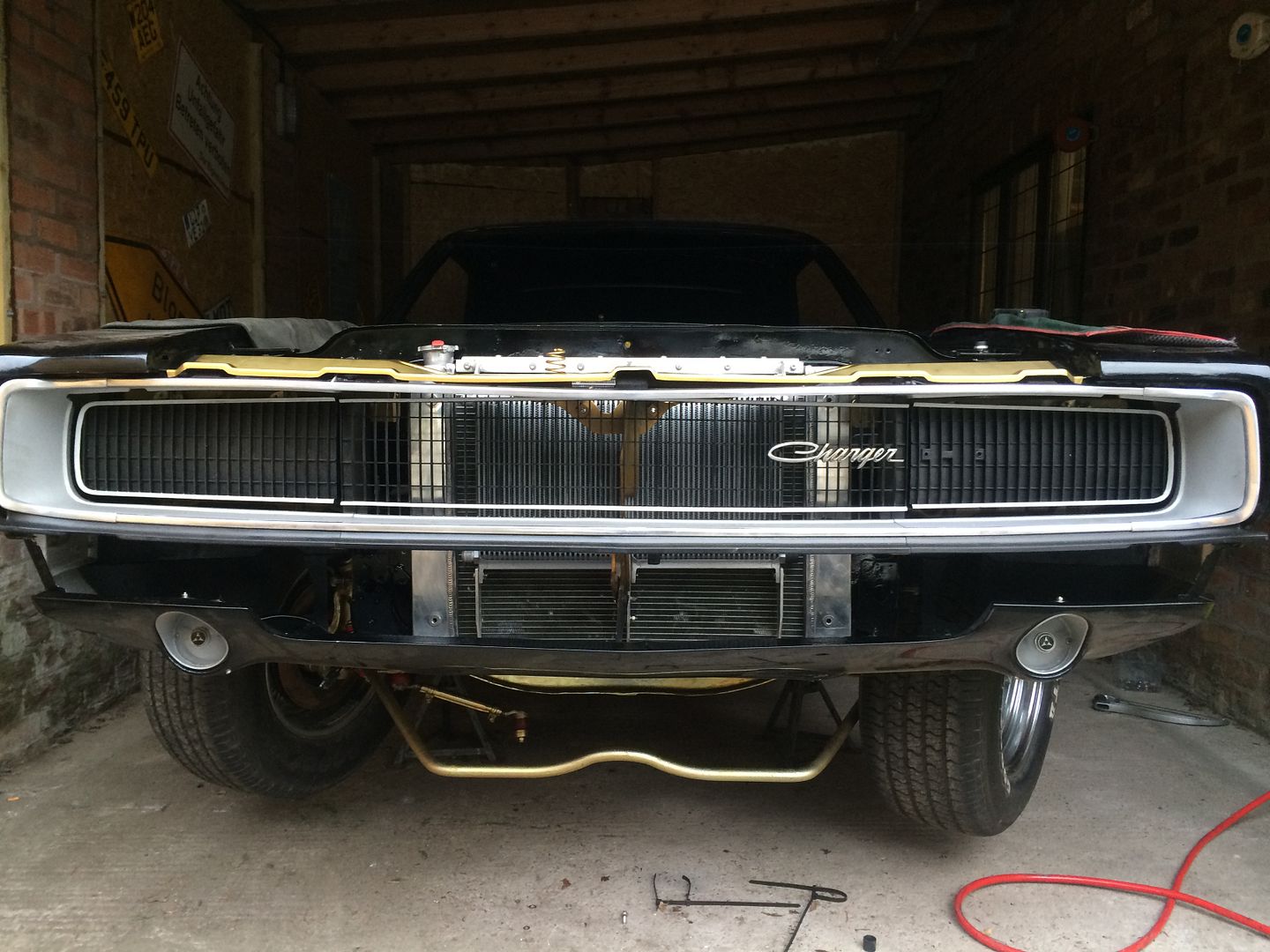

Finally managed to shoehorn 1 rad and 2 oil down the front of a charger
Had to cut grill support and fix to rad

<a href="http://s73.photobucket.com/user/autofet ... j.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... zufvkj.jpg" border="0" alt=" photo C51CF5E6-AB20-4956-B656-65B0B60202A0_zpsa2zufvkj.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... m.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... qgsclm.jpg" border="0" alt=" photo 60E4D6D8-633D-4FC3-B42F-779898D0750A_zpsshqgsclm.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... 9.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... rcrzu9.jpg" border="0" alt=" photo FE84FA0E-CC7E-4A2D-8020-4485D29CFA5B_zpstsrcrzu9.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... c.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... fmzqqc.jpg" border="0" alt=" photo C6633CFC-058C-49A0-BC77-06E1FB8F1057_zpsgzfmzqqc.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... 1.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... xhfbg1.jpg" border="0" alt=" photo F00DAFF1-80D2-45F4-BC49-3B2E92B81672_zpsfbxhfbg1.jpg"></a>

sinny · Post by **sinny** » Mon Mar 24, 14 2:51 pm

Nice work as always mate! Looks nice & strong.

Back to looking like a Charger.

autofetish · Post by **autofetish** » Mon Mar 24, 14 8:31 pm

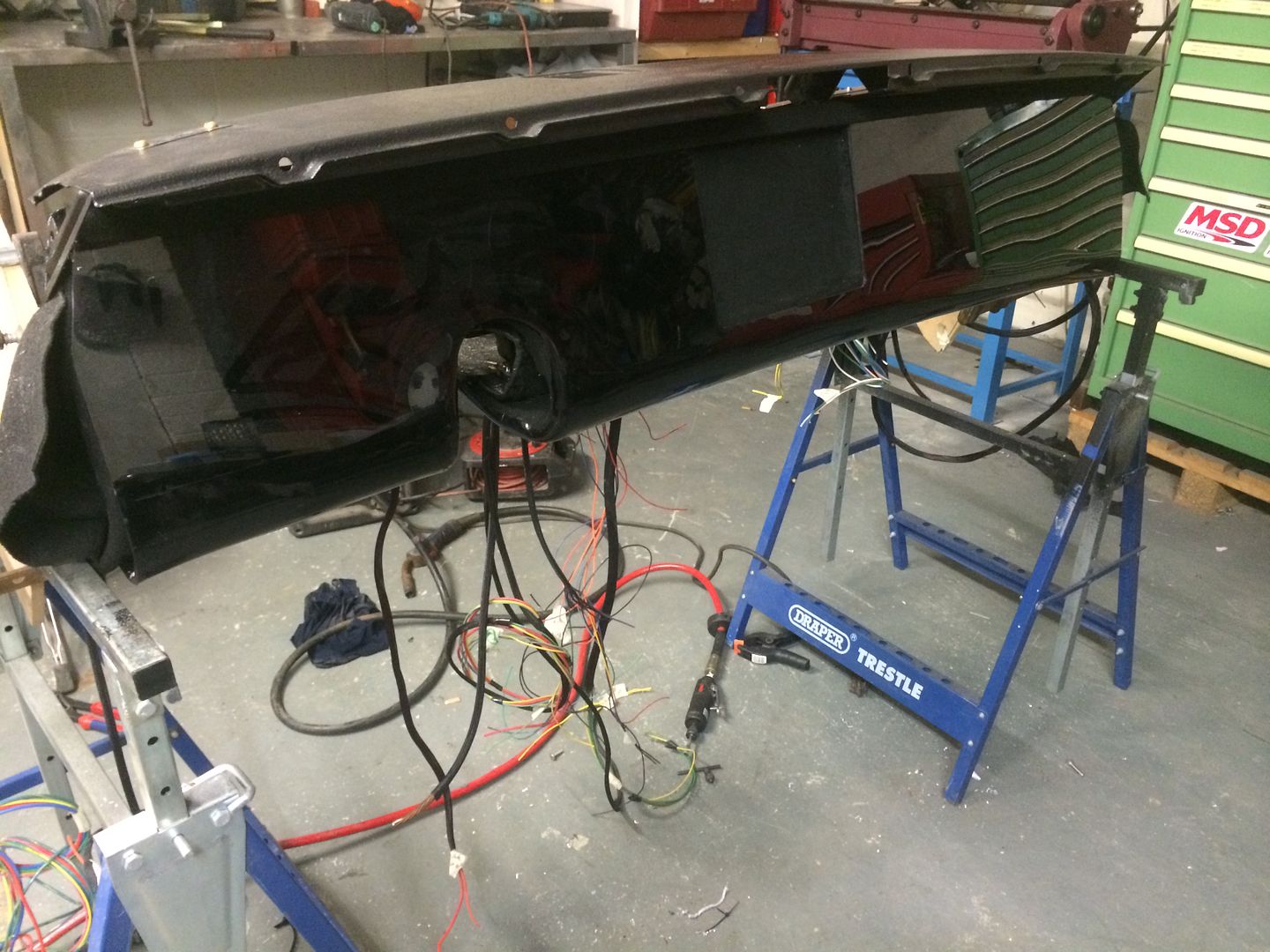

This Stupid bit of plastic had been driving me mental

My first plan was to Velcro this on but it won't last so I glued a Alu strip to it and this now bolts the plastic to welded nuts on inside of dash frame

<a href="http://s73.photobucket.com/user/autofet ... b.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... cb6aab.jpg" border="0" alt=" photo 979B1F47-286C-4186-A645-C2C71C35C988_zps5fcb6aab.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... 7.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... siuiw7.jpg" border="0" alt=" photo ADDB030B-D345-4E58-91E1-3A5DB502DA5E_zpsebsiuiw7.jpg"></a>

<a href="http://s73.photobucket.com/user/autofet ... q.jpg.html" target="_blank"><img src="http://i73.photobucket.com/albums/i205/ ... ltbwyq.jpg" border="0" alt=" photo 473ECE60-E279-44EE-8AED-E060A55255CA_zpsbeltbwyq.jpg"></a>

andyrob · Post by **andyrob** » Mon Mar 24, 14 8:59 pm

good stuff
german engineering at its best

this is shaping up to be the best panser in the fleet

Mossy68 · Post by **Mossy68** » Mon Mar 24, 14 10:39 pm

You've put a good few hours work on that dash Will.
Should look awesome when its all in.

Had a thought on your seats. Gotta be gold anodised !
What do you reckon ?

autofetish · Post by **autofetish** » Tue Mar 25, 14 7:58 am

Mossy68 wrote:You've put a good few hours work on that dash Will.
Should look awesome when its all in.

Had a thought on your seats. Gotta be gold anodised !
What do you reckon ?

I did think about that but such a fine line between class and bat mo bill.

Think it would just be to much. Feel I'm just getting away with the gold as it is. Mmmmmmm.

Turnip · Post by **Turnip** » Tue Mar 25, 14 8:36 am

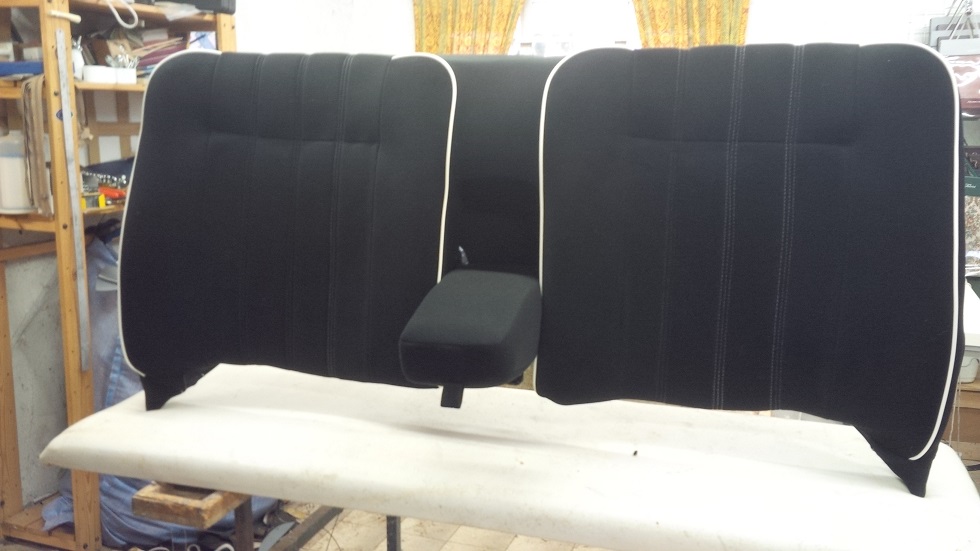

You could have black with gold in the centre of the back and seat or even just gold piping and stitching
