Radiator shroud fitting info reqd

RobTwin · Post by **RobTwin** » Wed Mar 07, 12 2:15 pm

Hope this reaches the 5% of members who might actually have the info we need....

Looking at getting a shroud for our 22" rad in the 69 Sport Satellite, and notice from Year One, the bracket kit we need looks like this

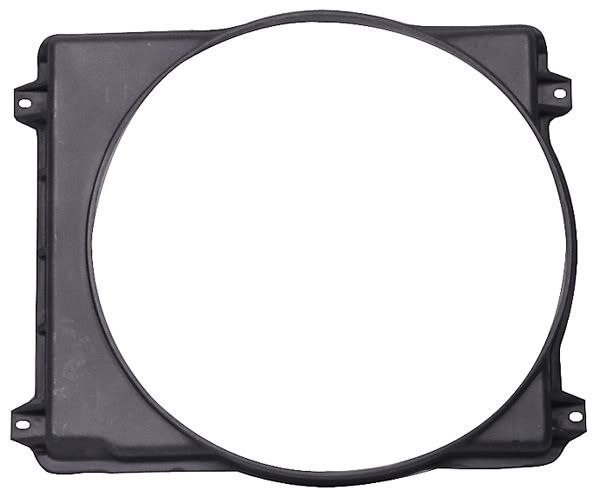

But I cant think how these would work fitting a shroud like this ('library pictures'

)

to our rad which looks like this (from a C body, apparently

)

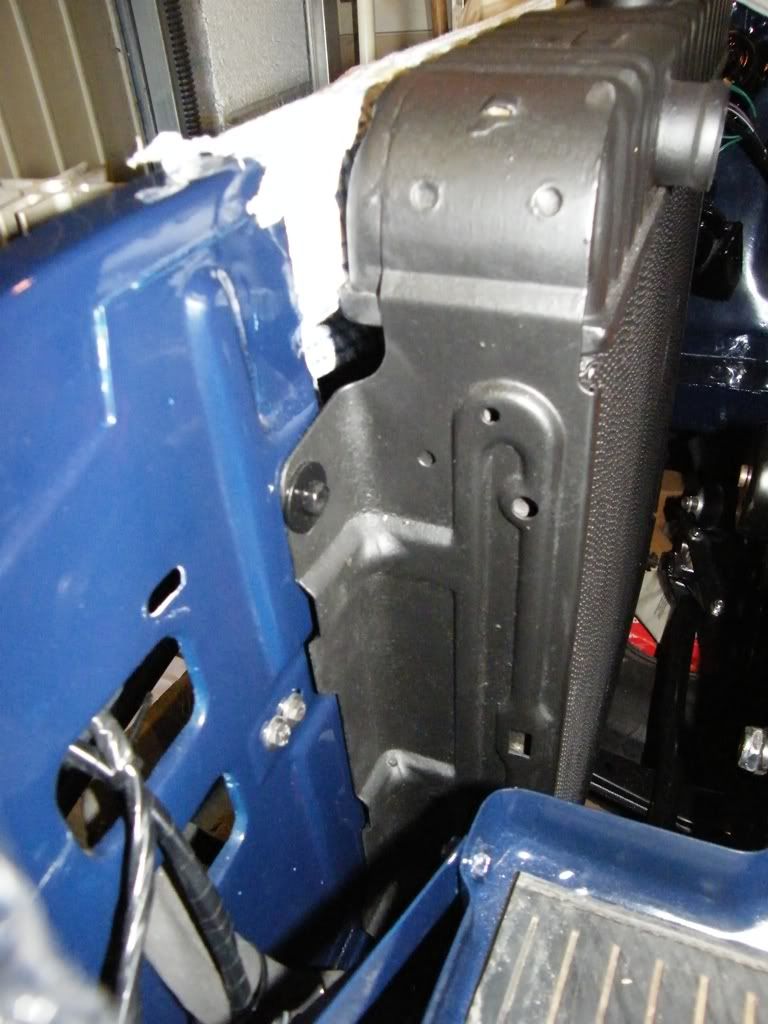

Has anyone with a similar set up got any pics of how the shroud fits to the rad? Just want to be sure we dont buy a shroud that isnt any good for our rad

Roger?
Steveo?
Adam?
Derek?

anyone?

Thanks in advance

Derek · Post by **Derek** » Wed Mar 07, 12 3:35 pm

I can show you pictures of mine but it's 4 inches bigger than yours.

ohhh matron. No brackets on mine, shroud bolts straight on.

RobTwin · Post by **RobTwin** » Wed Mar 07, 12 3:53 pm

Thanks Del. Trust you to have a bigger one

If yours bolts straight on (to the rad?), where does it bolt on to? The 22" shroud's bolt holes are on lugs that are parallel with the face of the radiator, so I presume those long brackets attach to the sides of the rad and provide a face for the shroud fixing lugs to bolt on to.

I'm struggling to see how a shroud of this style would fit without brackets

Unless it's fixed thru the fins

Sorry if I'm being a bit thick

Dave-R · Post by **Dave-R** » Wed Mar 07, 12 4:56 pm

RobTwin wrote:I'm struggling to see how a shroud of this style would fit without brackets Unless it's fixed thru the fins

Sorry if I'm being a bit thick

No it has to be one of the other. Personally, if it needed brackets i would just make some out of ally and paint them black.

steveo · Post by **steveo** » Wed Mar 07, 12 5:33 pm

there are a quite a few different shrouds for the 22 inch , both in plastic & pressed steel ! & off centered & centered shrouds too , as far as i can remember B & C bodies don't share the same part number ,
not sure why , position of engine in relation to radiator maybe , like the off centered & centered configuration i mentioned above !!
, also two different shroud attaching brackets , off the top of my head ( will look it up later ) there is another set of brackets that are four individual ones , if that makes sense for a earlier 22 inch rad

whats the part number on top of the radiator ? ,

Pete · Post by **Pete** » Wed Mar 07, 12 8:56 pm

I have a 26" Rad with an undamaged shroud, but it would need a re-core...........

steveo · Post by **steveo** » Thu Mar 08, 12 12:40 am

this is the shroud you need by the looks of it ,

( 130 ) 22" B-C Body shroud
( 9176) brackets

http://www.hoffmanswinnerscircle.com/cat04.htm

http://www.hoffmanswinnerscircle.com/im ... nstall.jpg

although i would find out what model year your radiator come off !!
, these seem to be what you need , although i have read somewhere C & B bodies shrouds are different , weather or not i'm remembering it wrong what i've read many years ago !! sure they were , & specific to fan diameter also !!
taking pictures of mine would be no help , sorry , as i have a 26" radiator
from the picture you posted the rad frame don't look like , to me whats in the link i posted , although could be the way the picture is !! ?

will investigete some more !!

nother idea like whats been mentioned , buy the shroud & fabricate brackets to fit ,
i did have /had did ? loads of pictures of a unrestored roadrunner really low milage , pictures of every thing under the hood , that had a 22 inch rad ,
not sure what i save it as or disk or deleted it , will post it here when & if i find it

RobTwin · Post by **RobTwin** » Thu Mar 08, 12 2:06 am

Thanks Steveo, useful site that.

Our rad is a 1970 C body rad. Dunno why? Same one that was in it when we got the car way back when

Hard to say whether their '130' or '328' would be the right one, but at $169, we might be better off with the one that Dave B is selling

Trouble is we dont know which version that is

On the other hand... ideally we'd have a '69 22" B-bod rad (part no 2949 053) which is 1/2" thinner than the C-bod rad, so we'd be able to use the viscous fan we bought... then we could get the right shroud & brackets to go with it. It's not a 'matching numbers' thing, just a 'get parts that fit together right' thing.

Thanks for your help

RobTwin · Post by **RobTwin** » Thu Mar 08, 12 2:12 am

Pete wrote:I have a 26" Rad with an undamaged shroud, but it would need a re-core...........

Nice idea Pete but we've only got a 22" rad support, being a 318 car (tho i know some B/RB cars had 22" too)

Pete · Post by **Pete** » Thu Mar 08, 12 8:23 am

I bet it will fit, you are welcome to borrow it to try..........

steveo · Post by **steveo** » Thu Mar 08, 12 11:16 am

RobTwin wrote:Thanks Steveo, useful site that.

Our rad is a 1970 C body rad. Dunno why? Same one that was in it when we got the car way back when

Hard to say whether their '130' or '328' would be the right one, but at $169, we might be better off with the one that Dave B is selling Trouble is we dont know which version that is

On the other hand... ideally we'd have a '69 22" B-bod rad (part no 2949 053) which is 1/2" thinner than the C-bod rad, so we'd be able to use the viscous fan we bought... then we could get the right shroud & brackets to go with it. It's not a 'matching numbers' thing, just a 'get parts that fit together right' thing.

Thanks for your help

had a look up the factory part numbers for 70 model year fan shroud for B & C bodies
with a 22" radiator with out A/C 383 /440

C - body shroud -- 2998330 - radiator -2998964
B - body shroud -- 2998328 - radiator - 2998957
brackets for both - 2949176

---------------------------
69 model year

C - body shroud --- 2949130 ---- radiator ---- 2949035
B - body shroud --- 2949130 ---- radiator --- 2949053
brackets for both --- 2929176
will look up more stuff later , think all the 22 inch rad cars had a fixed fan only , not that it matters , as your trying to fit the MP clutch fan set up

Jules · Post by **Jules** » Fri Mar 09, 12 3:19 pm

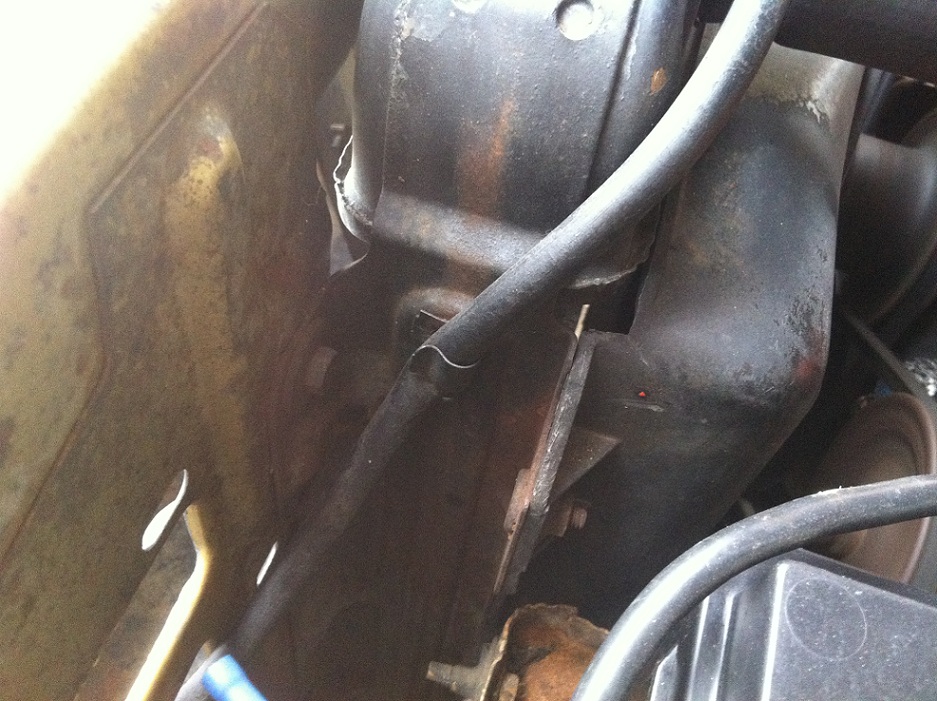

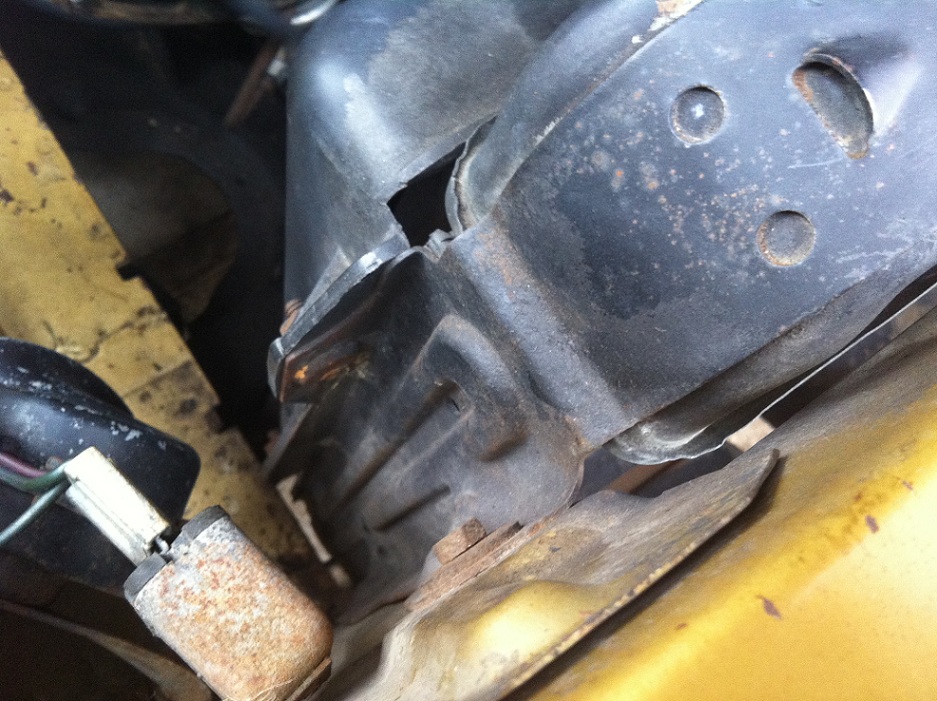

Just took these this morning Rob... hope they help out as to how it fits

I can get some more detailed ones if you need them

Jules

My rad's a 26" part number 2898041.

Will this link help anyone to identify what they've got?

http://www.rosevillemoparts.com/referen ... rguide.php

RobTwin wrote:............ ideally we'd have a '69 22" B-bod rad (part no 2949 053) which is 1/2" thinner than the C-bod rad....

That part number Rob shows here as a BB rad - non A/C

ANTON · Post by **ANTON** » Fri Mar 09, 12 3:37 pm

I have that shroud and brackets on my car.

The cage nuts from the kit go into the rectangle holes in the side of the rad and then the bracket bolts tot eh rad and then there a threaded studs on the brackets to bolt the shroud onto.

steveo · Post by **steveo** » Fri Mar 09, 12 6:00 pm

Jules wrote:Just took these this morning Rob... hope they help out as to how it fits

I can get some more detailed ones if you need them

Jules

My rad's a 26" part number 2898041.

Will this link help anyone to identify what they've got?

http://www.rosevillemoparts.com/referen ... rguide.php

RobTwin wrote:............ ideally we'd have a '69 22" B-bod rad (part no 2949 053) which is 1/2" thinner than the C-bod rad....
That part number Rob shows here as a BB rad - non A/C

D'oH yes your list is correct , Jules got that number incorrect , good job you posted this link , would never have gone back over what i typed ,
sorry for any confusion caused mates
have corrected my original post , so not to confuse anyone !

its **** 2949053 **** & not 2929053
& the other number 2998567 , must of been superceded with ** 2998957** it shows both numbers
sorry again for any confusion

the bishop · Post by **the bishop** » Sun Mar 11, 12 12:48 am

RobTwin wrote:
Pete wrote:I have a 26" Rad with an undamaged shroud, but it would need a re-core...........
Nice idea Pete but we've only got a 22" rad support, being a 318 car (tho i know some B/RB cars had 22" too)

My 69 Roadrunner had a 22" rad. Have a word with Budge and see if he sold it with the car, as it needed a small repair
