'68 - '70 charger

JinxJay · Post by **JinxJay** » Tue Mar 07, 17 11:48 pm

i'm in need of a little help,
I need to get some measurements of the front of 68 to 70 charger front ends,
anyone know where I could see the cars together to check some sizes,
need to do this fairly quick so cant really wait for the show season,

thanks Jay.

Gas for GOSH · Post by **Gas for GOSH** » Wed Mar 08, 17 8:40 pm

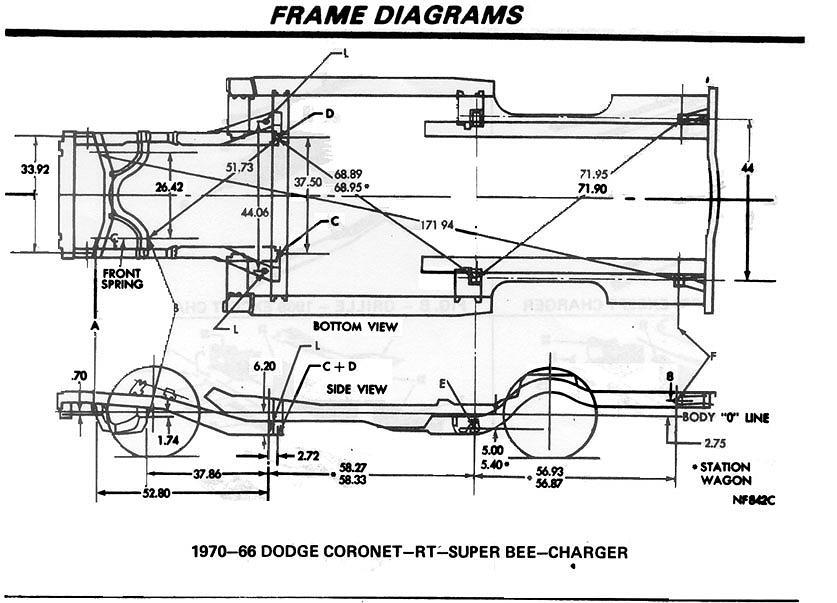

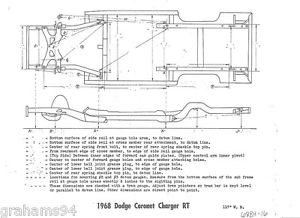

not sure exactly what you're after..does not cover all years but if you google Dodge Charger dimensions lots of this stuff comes up. First two are meant to be Charger, last one is Cuda in case thats of interest to others

SImon

JinxJay · Post by **JinxJay** » Thu Mar 09, 17 9:17 am

Thanks for that but it's body work I'm after.

Tell you what it is. I have a project to build a front of a '70 charger.
I can get a one piece fiberglass front end from the states but it's a' 68 and a reproduction '70 front bumper.
Just need to know if it's possible to put the two together and it look passable.

Charger · Post by **Charger** » Thu Mar 09, 17 3:32 pm

68 / 70 panels are different for sure, but you knew that, fenders, hood and valance

The main difference is the way the 68 fenders / hood are finished along the leading edge with a proper lip, 70 fenders / hood aren't finished the same as the edge is hidden behind the chrome loop bumper

Other differences, hood scallops, hood turn signal repeaters, side markers, turn signal / parking lamps

Good news, I think, for you is that the chrome loop bumper doesn't actually attach to the fenders or valance as such, it sits just in front supported by 2 mahoosive brackets that go on to the frame rails, there are 2 small 'stays' that keep the top of the chrome loop bumper in check attached to the fender lip under the hood, but these could easily be modified to go back to the rad support frame

So, would a 70 chrome loop bumper look 'passable' sat in front of 68 panels?? Maybe

You're welcome to look at mine anytime but I don't know of a 68 round these parts to compare it with side by side

JinxJay · Post by **JinxJay** » Thu Mar 09, 17 7:43 pm

Charger wrote:68 / 70 panels are different for sure, but you knew that, fenders, hood and valance

The main difference is the way the 68 fenders / hood are finished along the leading edge with a proper lip, 70 fenders / hood aren't finished the same as the edge is hidden behind the chrome loop bumper

Other differences, hood scallops, hood turn signal repeaters, side markers, turn signal / parking lamps

Good news, I think, for you is that the chrome loop bumper doesn't actually attach to the fenders or valance as such, it sits just in front supported by 2 mahoosive brackets that go on to the frame rails, there are 2 small 'stays' that keep the top of the chrome loop bumper in check attached to the fender lip under the hood, but these could easily be modified to go back to the rad support frame

So, would a 70 chrome loop bumper look 'passable' sat in front of 68 panels?? Maybe

You're welcome to look at mine anytime but I don't know of a 68 round these parts to compare it with side by side

thank you very much for that Si, the details like bonnet, side markers are not a problem as it all wants smoothing in, same with the bumper, just trying to figure out if its anything like before importing stuff,

charger01 · Post by **charger01** » Thu Mar 09, 17 9:17 pm

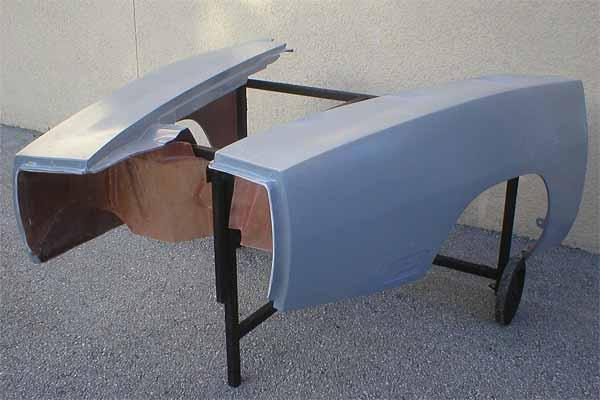

These are 70 Charger wings . Note the front lip.

R.RUNNER · Post by **R.RUNNER** » Sun Mar 12, 17 2:01 pm

Give JC a call as he`s got `68/`69/`70 Chargers in for restoration.
